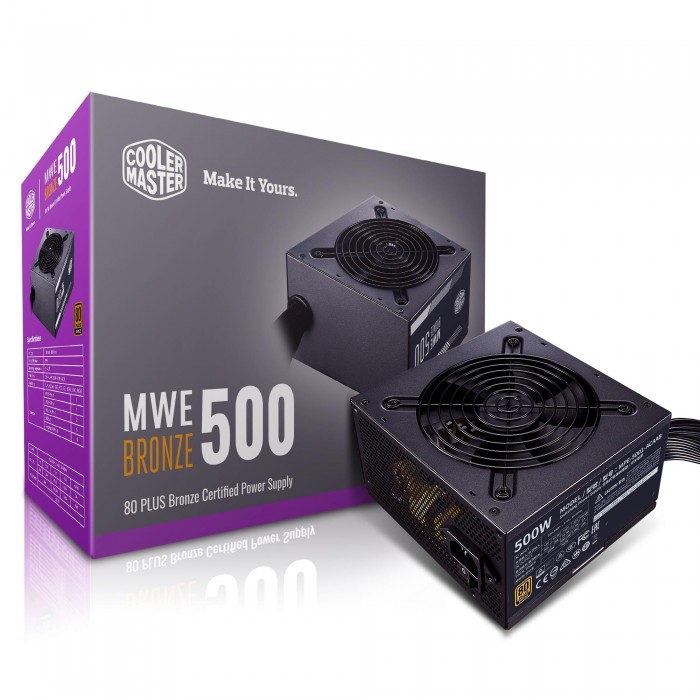

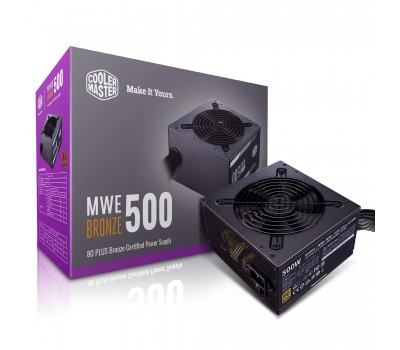

Блок питания Cooler Master MWE 500 Bronze V2,500W,12cm fan,a/PFC,24+8,4xPeripheral,6xSATA,2xPCIe
Месяц
| Основные | |
| Производитель | Cooler Master |
| Код производителя | MPE-5001-ACAAB-EU |
| Мощность | 500 Вт |
| Стандарт | ATX12V 2.52 |
| PFC | активный |
| Размер вентилятора | 120x120 мм |
| Разъемы | |
| Тип разъема для материнской платы | 20+4 pin |
| Количество разъемов 4+4 pin CPU | 1 |
| Количество разъемов 6+2-pin PCI-E | 2 |
| Количество разъемов 4-pin IDE (Molex) | 4 |
| Количество разъемов 15-pin SATA | 6 |
| Сила тока | |
| Ток по линии +3.3 В | 20 A |
| Ток по линии +5 В | 20 A |
| Ток по линии +12 В 1 | 41.6 A |
| Ток по линии -12 В | 0.3 A |
| Ток по линии +5 В Standby | 3 A |
| Дополнительно | |
| Защита от перенапряжения | да |
| Защита от перегрузки | да |
| Защита от короткого замыкания | да |
| Сертификат 80 PLUS | Bronze |
| Длина кабеля питания материнской платы | 61 см |
| Размеры (ШхВхГ) | 140 x 150 x 86 мм |
| Гарантия | 24 мес.  |
| Сайт производителя | www.coolermaster.com |
Product Overview
The MWE Bronze offers 80 Plus Bronze certification, guaranteeing an average efficiency of 85% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power to components reliably, efficiently, and safely for better overall performance. This unit operates in silent mode during low load functions and while in standby mode. Not only does this waste less power but it also creates a quieter overall user experience by not running the fan at maximum noise level when unneeded for safe operation. Discrete flat, black cables give users the ability to manage cabling easily with minimal space lost.
Features
• DC-to-DC Technology: The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.
• 120 mm HDB Fan: The hydro dynamic fan bearing creates less friction, making it great for low RPM operations.
• Silent Mode: The 120 mm HDB fan will remain completely silent during low load operations and while in standby mode.
• 80 PLUS Bronze Efficiency: This certification guarantees a typical efficiency of 85% under normal operating conditions.
• Flat Black Cables: The flat cables take up less space and are easier to manipulate within the chassis.
