Блок питания Thermaltake Toughpower GF1/750W/Fully Modular/Non Light/Full Range/80+ Gold/100% JP CAP

24
Месяц
P/N watts Model Max. Output Capacity Peak Output Capacity Color Dimension ( W / H / D ) PFC (Power Factor Correction) Power Good Signal Hold Up Time Input Current Input Frequency Range Input Voltage Operating Temperature Operating Humidity Storage Temperature Storage Humidity Cooling System Efficiency MTBF Safety Approval PCI-E 6+2pin Protection

PS-TPD-0750FNFAGx-1

750W

TTP-750AH3FCG

750W

900W

Black

150mm(W) x 86mm(H) x 160mm(D)

Active PFC

100-500 msec

> 16msec at 100% of full load

10A

50Hz - 60Hz

100V - 240V~

0°C to + 50°C

20% to 90%,non-condensing

-20°C to + 70°C

5% to 95%, non-condensing

14cm hydraulic bearing fan

Meet 80 PLUS®Gold at 115Vac input.

120,000 hrs minimum

CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC

4

OCP, OVP, UVP, OPP, SCP, OTP

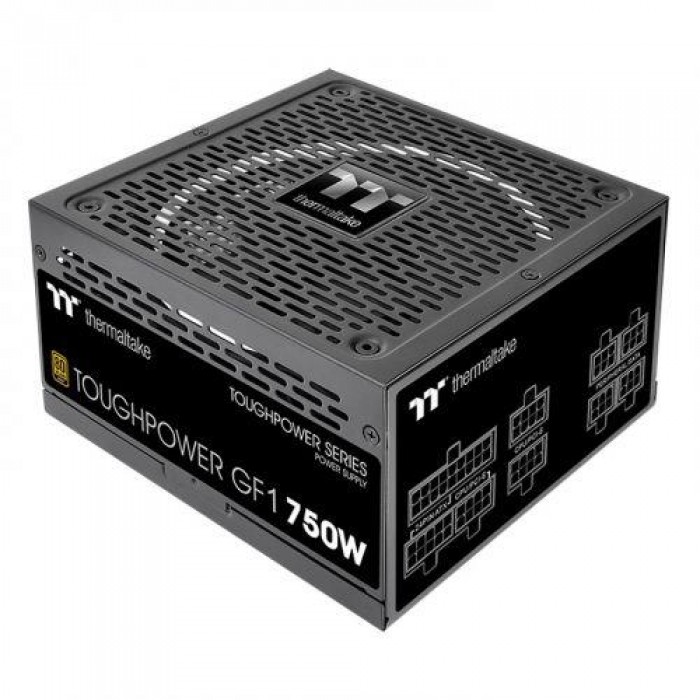

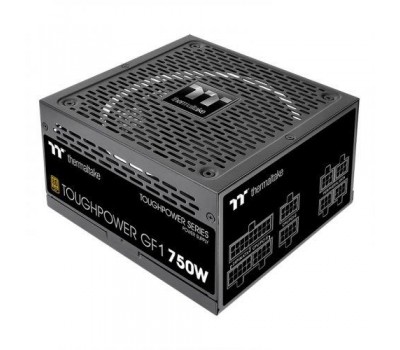

80 PLUS Gold certified fully modular PSU with Hydraulic Bearing fan.

Toughpower GF1 750W - TT Premium Edition

The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed.

?The photo is for reference.

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.
