Корпус Thermaltake Versa H18,без БП,прозрачная боковая стенка,1xUSB3.0,mATX,черный
Месяц
| CA-1J4-00S1WN-00 |
| Versa |
| Micro Case |
| 398 x 206 x 438.7mm (15.66 x 8.11 x 17.27 inch) |
| 4.5 kg / 9.92 lb |
| Transparent Window |
| Exterior & Interior : Black |
| SPCC |
| Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16dBA) |
- 2 x 2.5" ; 2 x 3.5” |
| 4 |
| 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| USB 3.0 x 1, USB 2.0 x 2, HD Audio x 1 |
| Standard PS2 PSU (optional) |
| Front: 3 x 120mm , 2 x 140mm Top: 1 x 120mm, 1 x 140mm Rear: 1 x 120mm |
| Front: 1 x 240mm 1 x 280mm Rear: 1 x 120mm |
| CPU cooler height limitation: 155mm VGA length limitation: 350mm(Without Front Fan) PSU length limitation: 220mm |
Versa H18

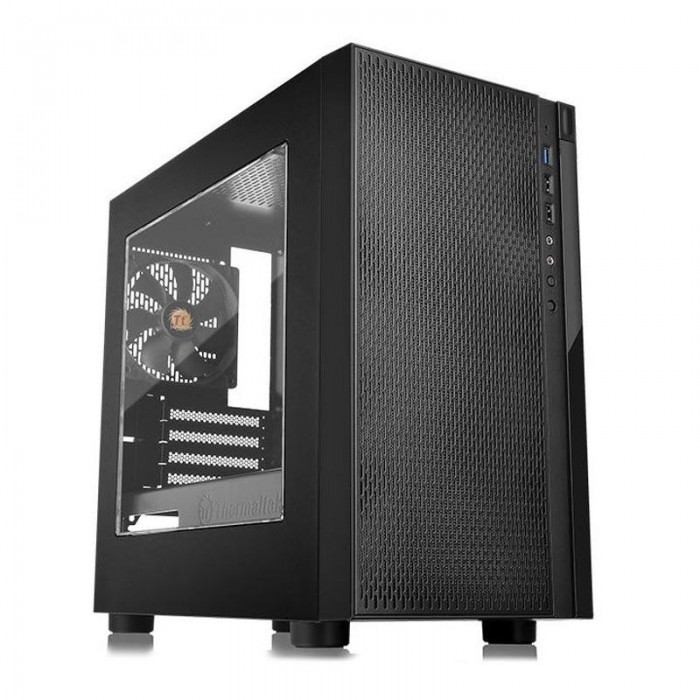

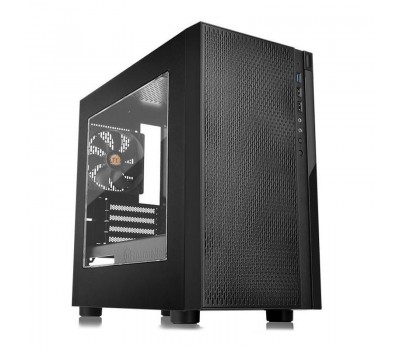

Versa H18 Window Micro Case
Designed for entry-level PC builders and gamers, Thermaltake Versa H18 Window Micro Case features the simplicity appearance with easy cable management design, AIO liquid cooling compatible, and ample ventilation options. Supporting the latest PC hardware and all high-end GPU solutions, the Versa H18 is a good choice for those who opt for stylish PC case with manageable frame size and advanced features.
Built for Gamers
The transparent window panel allows users to display all component of the build, offering a direct view of inner system. The mesh front panel and perforated top panel plus the heighted foot-stands at the bottom provide efficient airflow for the system.
Easy Cable Management
Wiring tangled problem no longer exists with the cable routing gap, hiding cables behind motherboard tray to ensure smoothness for building the system as well as better airflow. Plus, the pre-mounted PSU cover allows the entire bottom area of the case to be used to reorganize unused cables.
Superior Hardware Support
The Versa H18 supports motherboards up to Micro ATX, a tower CPU cooler with maximum height 155mm, and a dual expansion slot VGA of up to 350mm in length without front fan. The hidden drive bays can house up to two 2.5” and two 3.5” storage devices at same time.
AIO Liquid Cooling Compatible
Supporting all types of AIO liquid cooling solutions, the Versa H18 has the capability to accommodate up to one 280mm radiator at the front and one 120mm radiator at the rear.
Optimized Ventilation
Standard equipped with one 120mm rear fan along with optional three 120mm or two 140mm intake fans as well as one 120mm/140mm exhaust fans provides efficient airflow for the system.
Handy I/O Ports
The front panel is designed a USB 3.0 data transfer port along with two standard USB 2.0 ports and a HD microphone and headset jacks, to grand direct access when needed.
Radiator Support List
Radiator Compatibility List
| Front | ? | ? | ? | ? | - |
| Top | - | - | - | - | - |
| Rear | ? | ? | - | - | - |
All-in-One Compatibility List
(Water 3.0 Series and Floe Riing RGB series)
| Front | ? | ? | ? | ? | - |
| Top | - | - | - | - | - |
| Rear | ? | ? | - | - | - |
Fan Support List
Fan Compatibility List
| Front | 3 | 2 | - |
| Top | 1 | 1 | - |
| Rear | 1 | - | - |
Thermaltake Compatible Fan
| PURE FAN Series | ? | ? | - |
| Riing FAN Series | ? | ? | - |
