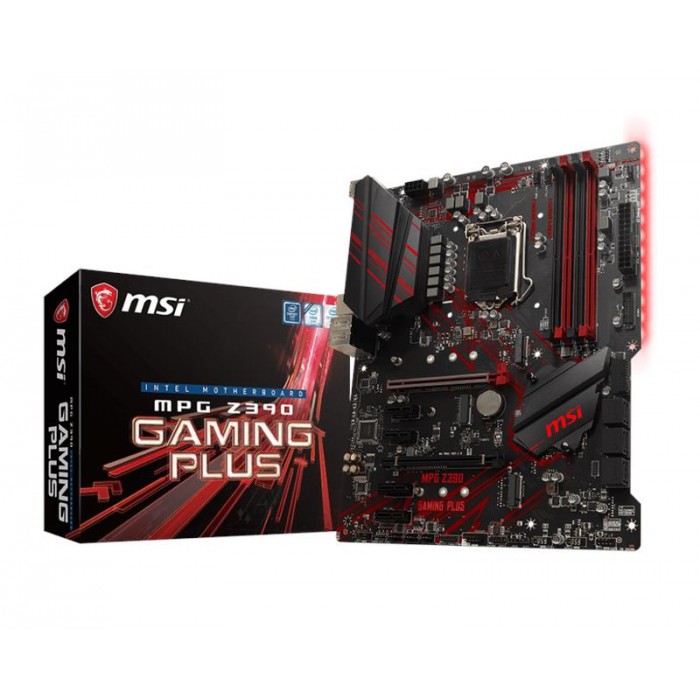

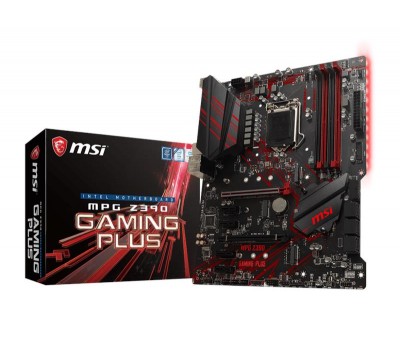

Материнcька плата MSI MPG_Z390_GAMING_PLUS s1151 Z390 4xDDR4 M.2 HDMI-DVI ATX

36
Месяц

Processor

Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

Chipset

Intel® Z390 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

See supported memory

Slots

• 2 x PCIe 3.0 x16 slots
• 4 x PCIe 3.0 x1 slots
• 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

Multi-GPU

• Supports 2-Way AMD CrossFire™ Technology

Storage

Intel® Z390 Chipset

• 6 x SATA 6Gb/s ports1
• 2 x M.2 slot (Key M)1
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready2

1. M.2 slots and SATA ports share the bandwidth. Please refer user manual for details.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel
• 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)1

1. The CNVI_1 and JUSB2 share the same bandwidth. Please refer user manual for details.

Audio

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel® I219-V Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (2 M-Key slots,1 E-Key slot)
• 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 5x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 2x 4-pin RGB LED connectors
• 1x Serial Port connector
• 1x Clear CMOS jumper

Back panel ports

1. PS/2 Combo Port
2. LAN
3. HD Audio Connectors
4. USB 2.0
5. DVI-D
6. HDMI
7. USB 3.1 Gen2 Type-A + C
8. USB 3.1 Gen1

Dimensions

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

1. Specifications may differ depending on your location, and we reserve the right to change without notice. Please check with your local dealers for detailed specifications.
2. Due to photography and/or monitor settings, coloration of product images may vary from actual product.
