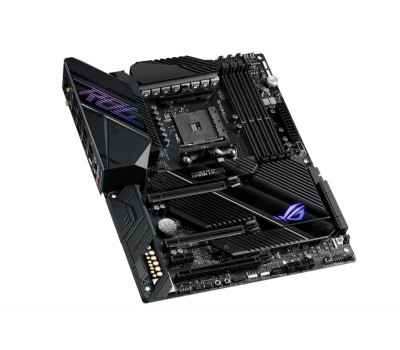

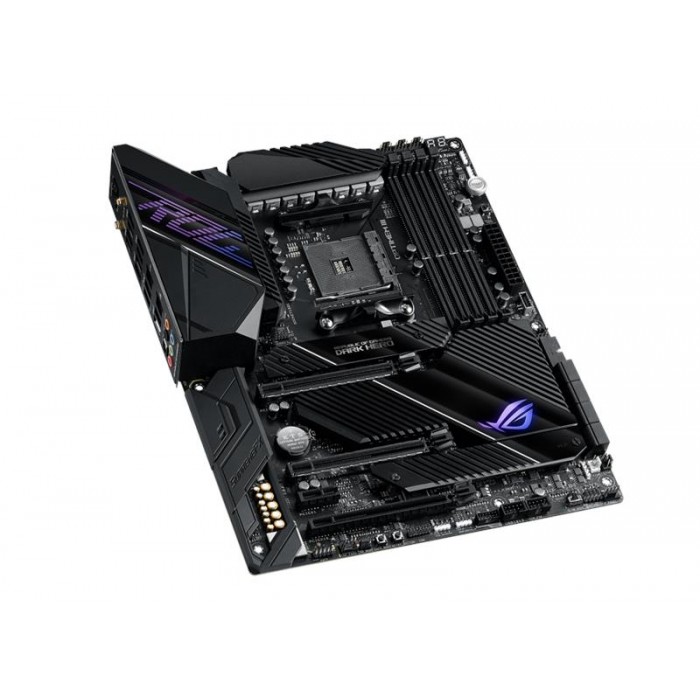

Материнcкая плата ASUS CROSSHAIR_VIII_DARK_HERO sAM4 X570 4xDDR4 PCIe 4.0 Wi-Fi!!!BT ATX

36
Месяц

CPU

* Refer to www.asus.com for CPU support list AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

Chipset

AMD X570

Memory

Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). AMD Ryzen™ 4000 G-Series Desktop Processors AMD RyzenTM 2000 Series Processors 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Multi-GPU Support

Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX™ Technology AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors> AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Expansion Slots

2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

Storage

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

LAN

Intel® I211-AT Realtek® RTL8125-CG 2.5G LAN ASUS LANGuard

Wireless Data Network

Intel® Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface

Bluetooth

Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality120dBSNR stereo playback outputand113dBSNR recording input - ESS® ES9023P - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding™ Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Audio Cover - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit - Power pre-regulator: Reduces power input noise to ensure consistent performance * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

4 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 6 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :

Special Features

AURA : - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS EZ DIY : - ASUS USB BIOS FlashBack™ ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

Back I/O Ports

1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () 1 x BIOS FlashBack™ Button(s) 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port

Internal I/O Ports

2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x M.2 Socket 3 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Accessories

User´s manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x ROG Thank you card 1 x M.2 SSD screw package(s)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability

WOL, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
