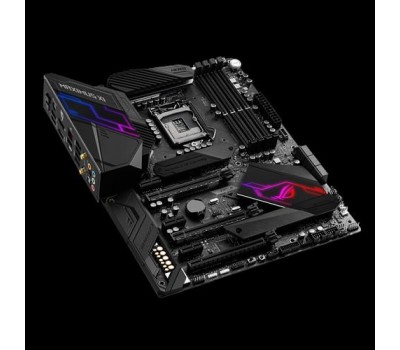

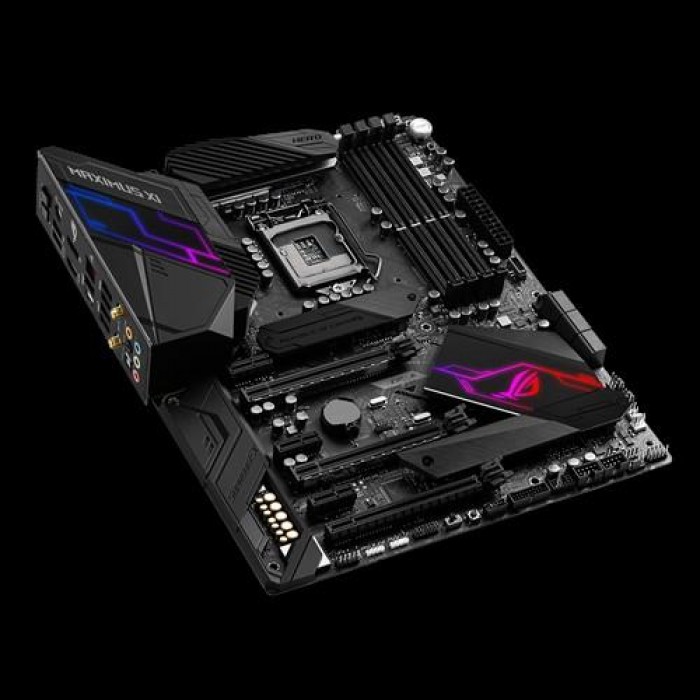

Материнcкая плата ASUS MAXIMUS_XII_HERO_WI-FI s1200 Z490 4xDDR4 M.2 HDMI-DP Wi-Fi!!!BT ATX

36
Месяц

Поддерживаемые процессоры

Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *Refer to www.asus.com for CPU support list
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Чипсет Intel® Z390
• Память 4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists).
• Видеокарта Integrated Graphics Processor- Intel® UHD Graphics support
  Multi-VGA output support : HDMI/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
• Поддержка конфигураций с несколькими видеокартами Supports NVIDIA® 2-Way SLI™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Слоты расширения Intel® Z390 Chipset
  2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
  1 x PCIe 3.0 x16 (x4 mode) *1
  3 x PCIe 3.0 x1
• Накопитель Intel® Z390 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s ports (gray)
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
• LAN Intel® I219V, 1 x Gigabit LAN Controller(s),
  Anti-surge LANGuard
  ROG GameFirst Technology
• Беспроводные стандарты Intel® Wireless-AC 9560
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Supports MU-MIMO
  Supports channel bandwidth: HT20/HT40/HT80/HT160
• Bluetooth Bluetooth® 5.0
• Аудио ROG SupremeFX 8-Channel High Definition Audio CODEC
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - SupremeFX Shielding Technology
  - ESS® ES9023P
  - Supports up to 32-Bit/192kHz playback *3
  Audio Feature :
  - Gold-plated jacks
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Link
• Порты USB Intel® Z390 Chipset :
  4 x USB 3.1 Gen 2 port(s) (4 at back panel, )
  Intel® Z390 Chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
  Intel® Z390 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  Intel® Z390 Chipset :
  1 x USB 3.1 Gen 2 front panel connector port(s)
• Функции разгона системы ReTry Button
  Start Button
  Reset Button
  Extreme Engine Digi+ :
  - MicroFine Alloy Chokes
  - 10K Black Metallic Capacitors
  Mem TweakIt
  Extreme Tweaker
  ROG Exclusive Software
  - Mem Tweakit
  - RAMCache III
  - RAMDisk
  - CPU-Z
  - GameFirst V
  - Sonic Studio III + Sonic Studio Link
  - Sonic Radar III
• Специальные функции ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  - Aura Addressable Strip Header(s)
  ASUS Exclusive Features :
  - USB BIOS Flashback
  - MemOK! II
  - AI Suite 3
  - Ai Charger
  - ASUS CrashFree BIOS 3
  - Armoury Crate
  - Pre-mounted I/O Shield
  - ASUS NODE: hardware control interface
  - OptiMem II
  - ASUS EZ Flash 3
  - ASUS C.P.R.(CPU Parameter Recall)
  - BUPDATER
  - BIOS Flashback Button
  - Clear CMOS Button
  - Reset Button
  ASUS Q-Design :
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
• Входы/выходы на задней панели 1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 2 ((Red)) (1 x Type-C+3 x Type-A)
  2 x USB 3.1 Gen 1 ((Blue)) Type-A
  2 x USB 2.0
  1 x Optical S/PDIF out
  1 x Clear CMOS button(s)
  1 x USB BIOS Flashback Button(s)
  1 x ASUS Wi-Fi Module
  5 x Gold-plated audio jacks
• Внутренние разъемы 2 x Aura Addressable Strip Header(s)
  2 x Aura RGB Strip Headers
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
  1 x TPM connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x AIO_PUMP connector (1 x 4 -pin)
  1 x H_AMP fan connector
  1 x W_PUMP+ connector (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x MemOK! II switch(es)
  1 x Reset button(s)
  1 x Node Connector(s)
  1 x ReTry button
  1 x System panel connector
  1 x EXT_Fan header
  1 x W_IN header
  1 x W_OUT header
  1 x W_FLOW header
  1 x Thermal sensor connector
  1 x Start button
  1 x USB 3.1 Gen 2 front panel connector
• Аксессуары User's manual
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  1 x SLI HB BRIDGE(2-WAY-M)
  1 x ROG big sticker
  1 x Q-Connector
  1 x Extension Cable for RGB strips (80 cm)
  1 x Extension cable for Addressable LED
  1 x ROG coaster(s)
• BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
• Операционная система Windows® 10 64-bit
• Форм-фактор ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Примечание *1 The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default. *2 When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled. *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
