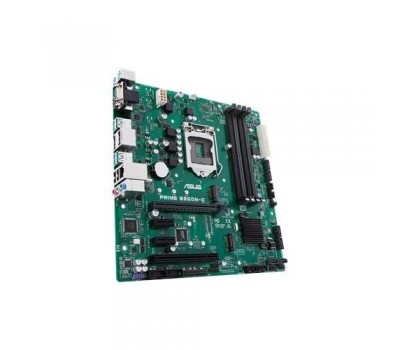

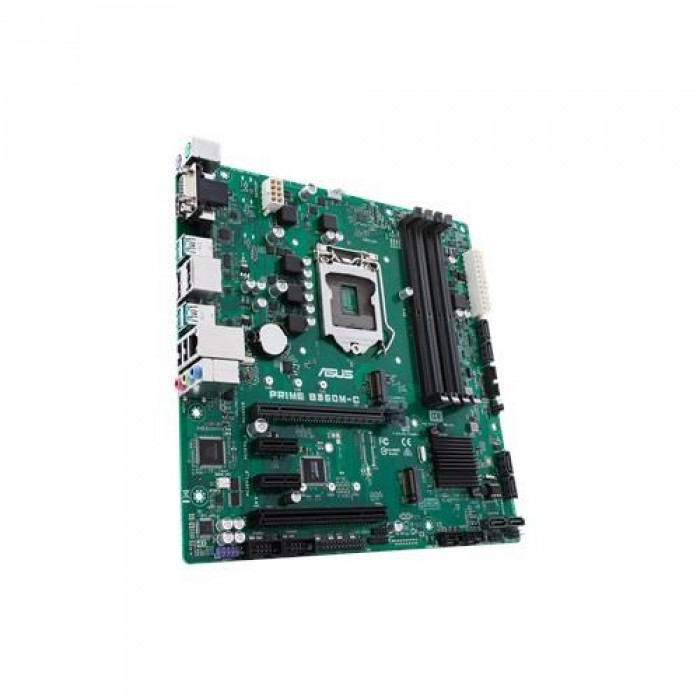

Материнcкая плата ASUS PRIME_B360M-C/CSM s1151 B360 4xDDR4 M.2 HDMI-DP-VGA M.2 Socket 3 mATX CSM

36
Месяц

Поддерживаемые процессоры

Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors *Refer to www.asus.com for CPU support list
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Чипсет Intel® B360
• Память 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  *Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  *Refer to www.asus.com or this user manual for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  * The maximum memory frequency supported varies by processor
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Видеокарта Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/RGB/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Слоты расширения 1 x PCIe 3.0/2.0 x16
  2 x PCIe 3.0/2.0 x1
  1 x PCI
• Накопитель Intel® B360 Chipset :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
  6 x SATA 6Gb/s ports (gray)
  Intel® Optane™ Memory Ready
• LAN Intel® I219V, 1 x Gigabit LAN Controller(s)
• Аудио Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
• Порты USB Intel® B360 Chipset :
  4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 2 at mid-board)
  Intel® B360 Chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  Intel® B360 Chipset :
  6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
• Специальные функции Bespoke Motherboard Design & Business Focused Features :
  - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  - ASUS Event Log: Record activities of system and provides information in BIOS
  - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
  - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
  Digi+VRM
• Входы/выходы на задней панели 1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  2 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.1 Gen 2 ()Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• Внутренние разъемы 1 x MONO out header *2
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
  1 x LPT header
  2 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
  1 x LPC Debug header
• Аксессуары User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit
• Управляемость WOL, PXE
• Диск поддержки Watch dog timer, Drivers
• Операционная система Windows® 10 64-bit
• Форм-фактор uATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Примечание *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Use with amplified speaker is suggested.
