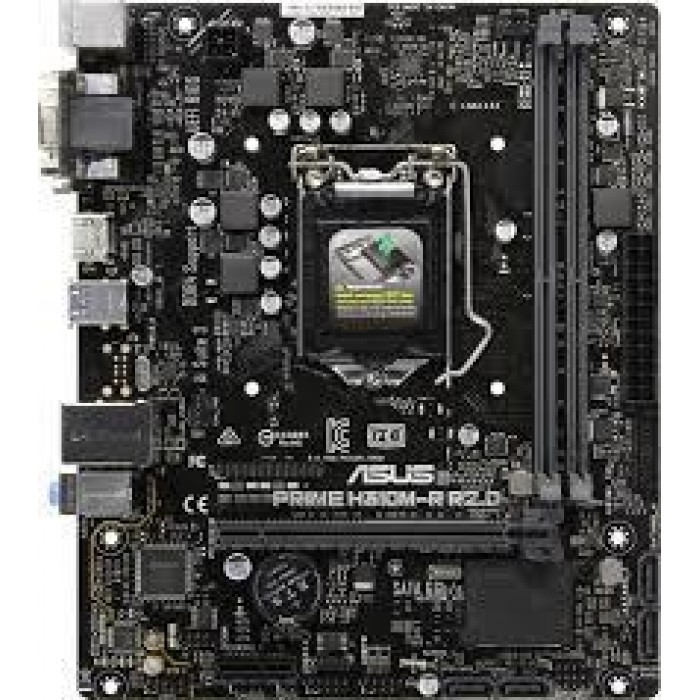

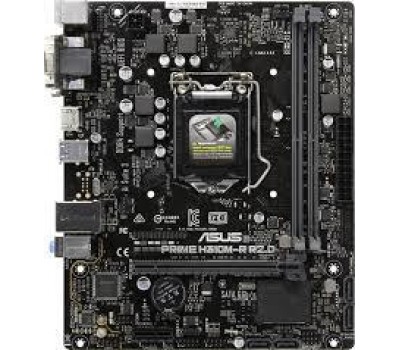

Материнcкая плата ASUS PRIME_H310M-R_R2.0 s1151 H310 2xDDR4 HDMI-DVI-VGA mATX White box
-
- Производитель: Asus components
- Доступность: На складе
- Код товара: 104368-01
- Артикул PRIME_H310M-R_R2.0
Месяц
| PRIME H310M-R R2.0 | |
| Note: The specifications are subject to change without notice. | |
|
CPU | LGA1151 socket for the 8th Generation Intel® Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors |
| Supports 14nm CPU | |
| Supports Intel® Turbo Boost Technology 2.0* | |
| * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. | |
| ** Refer to www.asus.com for Intel® CPU support list. | |
| Chipset | Intel® H310 Chipset |
|
Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. | |
| ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors | |
| *** Refer to www.asus.com for the Memory QVL(Qualified Vendors List). | |
| Expansion Slots | 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode) |
| 1 x PCI Express 2.0 x1 slot | |
|
VGA | Integrated Graphics Processor - Intel® HD Graphics support |
| Multi-VGA output support: HDMI/DVI-D/D-Sub port | |
| - Supports HDMI with max. resolution 4096 x 2304 @24Hz | |
| - Supports DVI-D with max. resolution 1920 x 1200 @60Hz | |
| - Supports D-Sub with max. resolution 1920 x 1200 @60Hz | |
| Supports up to 2 displays simultaneously | |
| Maximum shared memory of 1024MB | |
| Storage | Intel® H310 Chipset and Intel Rapid Storage Technology 16 suppot: |
| - 4 x Serial ATA 6.0 Gb/s connectors | |
| LAN | Realtek® 8111H Gigabit LAN support LANGuard |
|
Audio | Realtek® ALC887 8-channel* High Definition Audio CODEC |
| - Supports jack-detection and front panel jack-retasking | |
| * Use a chassis with HD audio module in the front panel to support a 8-channel audio output. | |
|
USB | Intel® H310 Chipset |
| - 4 x USB 3.1 Gen1 ports (2 ports @ mid-board, 2 ports @ back panel) | |
| - 6 x USB 2.0/1.1 ports (4 ports @ mid-board, 2 ports @ back panel) | |
|
ASUS Special Features | ASUS 5X PROTECTION III |
| - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage | |
| - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| - ASUS Overvoltage Protection: World-class circuit-protecting power design | |
| - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| - ASUS DIGI+ VRM: 3+1 Phase digital power design | |
| ASUS OptiMem: | |
| - Optimem (Improved DDR4 stability) | |
| Superb Performance | |
| ASUS EPU | |
| - EPU | |
| UEFI BIOS | |
| - Most advanced options with fast response time | |
| ASUS Exclusive Features | |
| - ASUS AI Charger | |
| - ASUS AI Suite 3 | |
| ASUS Quiet Thermal Solution : | |
| - Stylish Fanless Design Heat-sink solution | |
| - ASUS Fan Xpert | |
| ASUS EZ DIY | |
| ASUS EZ Flash | |
| Safe motherboard mounting | |
| - Component-free areas to minimize damage risk | |
| Q-Design | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
|
Back Panel I/O Ports | 1 x PS/2 keyboard (purple) |
| 1 x PS/2 mouse port (green) | |
| 2 x USB 3.1 Gen1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x HDMI port | |
| 1 x DVI port | |
| 1 x D-Sub port | |
| 1 x LAN (RJ-45) port | |
| 3 x Audio jacks support 8-channel audio output | |
| * Use a chassis with HD audio module in the front panel to support a 8-channel audio output. | |
|
Internal I/O Connectors | 1 x USB 3.1 Gen1 connectors support additional 2 USB USB 3.1 Gen1 ports |
| 2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports | |
| 4 x SATA 6.0Gb/s connectors | |
| 1 x 4-pin CPU Fan connector for 4-pin PWM mode | |
| 1 x 4-pin Chassis Fan connector for 4-pin PWM mode | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x COM header | |
| 1 x LPT header | |
| 1 x 24-pin EATX Power connector | |
| 1 x 4-pin ATX 12V Power connector | |
| 1 x 14-1 pin TPM header | |
| 1 x Clear CMOS | |
| 1 x Speaker connector | |
| 1 x Chassis Intrusion header | |
| 1 x System Panel connector | |
| BIOS | 64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, ASUS EZ Flash, Multi Language |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
|
Accessories | 2 x Serial ATA 6.0Gb/s cables |
| 1 x I/O shield | |
| 1 x Support DVD | |
| 1 x User's manual | |
|
Support DVD | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| 122u0 | Windows® 10 (64-bit) |
| Form Factor | uATX Form Factor 8.4"*7.0" (21.34 cm*17.78 cm) |
