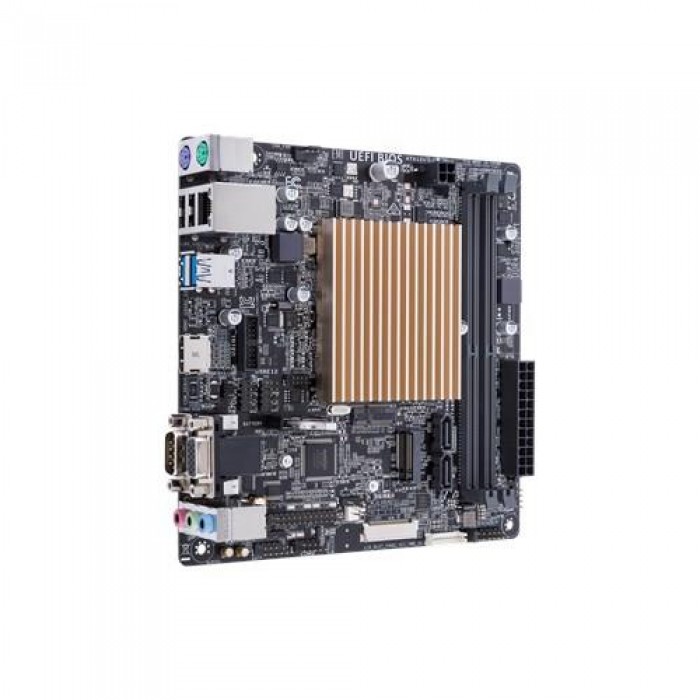

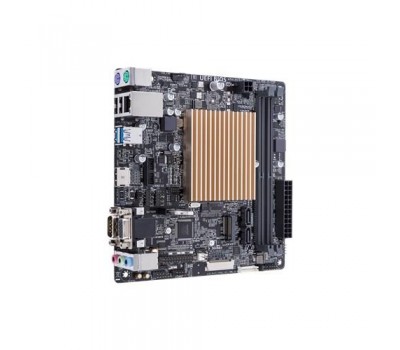

Материнcкая плата ASUS PRIME_J4005I-C CPU Celeron Dual-Core (2.7GHz) 2xR4 VGA-HDMI-LVDS M.2 3 mIT

12
Месяц

Memory

2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

• Graphic Integrated Graphics Processor
  Multi-VGA output support : HDMI/RGB/LVDS ports
  - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz
  - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 512 MB (for iGPU exclusively)
  Supports up to 3 displays simultaneously
• Storage 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
  2 x SATA 6Gb/s port(s),
• LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Front Panel Jack-retasking
• USB Ports Built-in Controller :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
  Built-in Controller :
  2 x USB 2.0 port(s) (2 at back panel, )
  GL852G USB Hub :
  4 x USB port(s) (4 at mid-board)
• Special Features ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  - ASUS ESD Guards - Electrostatic discharge protection
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  ASUS EZ DIY :
  - ASUS EZ Flash 3
  - ASUS MyLogo 2
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-DIMM
• Operating System Support Windows® 10 64-bit
  Linux
• Back I/O Ports 1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 ,
  2 x USB 2.0
  1 x COM port(s)
  3 x Audio jack(s)
• Internal I/O Ports 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode
  1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode)
  1 x LPT header
  1 x COM port(s) connector(s)
  2 x SATA 6Gb/s connector(s)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x Panel off header
  1 x LVDS connector(s)
  1 x System panel connector
  1 x Flat panel display brightness connector
  1 x Display panel VCC power selector
  1 x Speaker connector
• Accessories User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  2 x M.2 Screw Package
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready
• Manageability WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor Thin Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note *1 We recommend that you use 8GB or less memory modules.
  *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output
