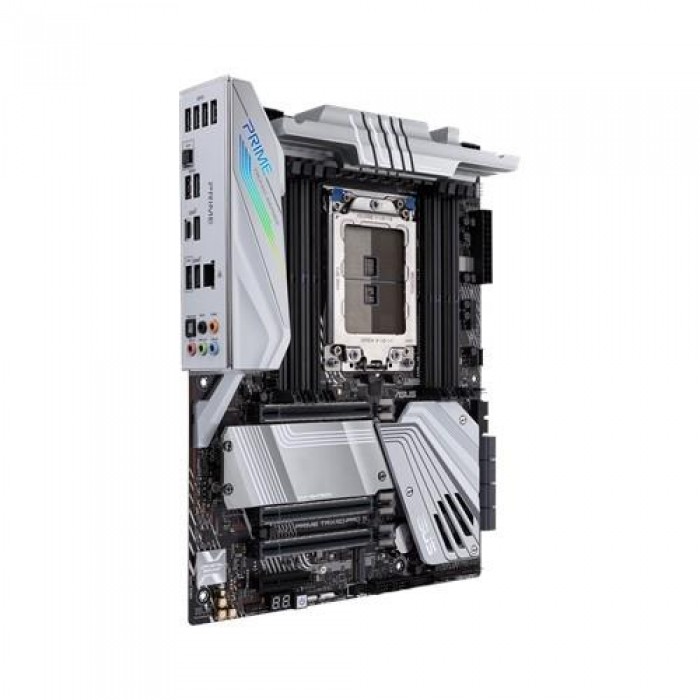

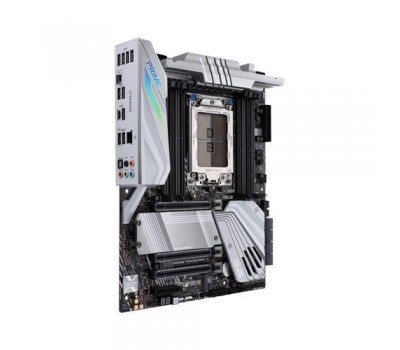

Материнcкая плата ASUS PRIME_TRX40-PRO_S sTRX4 TRX40 8xDDR4 ATX

36
Месяц

CPU

AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors *
Supports CPU up to 64 cores
* Refer to www.asus.com for CPU support list

• Chipset Build in AMD TRX40
• Memory 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
  8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Multi-GPU Support Supports NVIDIA® Quad-GPU SLI® Technology
  Supports NVIDIA® 2-Way SLI® Technology
  Supports AMD Quad-GPU CrossFireX™ Technology
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
  3 x PCIe 4.0 x16 (x16/x16/x16) *
  AMD TRX40 chipset
  1 x PCIe 4.0 (x4 mode)
• Storage 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
  2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
  AMD TRX40 chipset :
  1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  8 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN Intel® I211-AT
  ASUS Turbo LAN Utility
  ASUS LAN Guard
• Audio Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
  - Impedance sense for front and rear headphone outputs
  - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)
  Audio Feature :
  - DTS X®:Ultra
  - Optical S/PDIF out port(s) at back panel
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
• USB Ports AMD Ryzen™ Threadripper™ Processors :
  4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
  AMD TRX40 chipset :
  1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)
  AMD TRX40 chipset :
  6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
  AMD TRX40 chipset :
  2 x USB 2.0 port(s) (2 at mid-board)
  ASMedia® USB 3.2 Gen 1 controller :
  4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)
  GL852G USB Hub :
  2 x USB 2.0 port(s) (2 at mid-board)
• Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
  ASUS SafeSlot - Protect your graphics card Investment
  AURA :
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  - Addressable Gen 2 Header
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Onboard Button : Power
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Turbo LAN
  - Crystal Sound 3
  - Armoury Crate
  - Pre-mounted I/O Shield
  ASUS Quiet Thermal Solution :
  - Stylish Design Heat-pipe solution
  - Stylish Fanless Design with M.2 Heat-sink solution
  - ASUS Fan Xpert 4
  ASUS EZ DIY :
  - ASUS EZ Flash 3
  - ASUS USB BIOS FlashBack™
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
• Back I/O Ports 1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
  6 x USB 3.2 Gen 1 (blue)
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x USB BIOS FlashBack™ Button(s)
• Internal I/O Ports 1 x Q_Code
  2 x Aura RGB Strip Header(s)
  2 x Addressable Gen 2 header(s)
  2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  1 x M.2 with E key for Wi-Fi module
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  3 x Chassis Fan connector(s) (3 x 4 -pin)
  1 x AIO_PUMP connector (1 x 4 -pin)
  1 x W_PUMP+ connector (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  2 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Q-Connector) x With flexkey function
  1 x Thermal sensor connector(s)
  1 x Power-on button(s)
  1 x Clear CMOS jumper(s)
  1 x Node Connector(s)
  1 x USB 3.2 Gen 2 front panel connector
• Accessories User's manual
  1 x Vertical M.2 bracket set
  4 x SATA 6Gb/s cable(s)
  2 x M.2 Screw Package
  1 x Supporting DVD
  1 x Q-Connector
  1 x Extension Cable for RGB strips (40 cm)
  1 x Extension cable for Addressable LED
  1 x CPU Fan Holder
• BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Manageability WfM 2.0, WOL by PME, PXE
• Operating System Windows® 10 64-bit
• Form Factor ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note Recommend you to install add-on cards on (PCIEX16_1 and PCIEX16_2) or (PCIEX16_1 and PCIEX16_3) to enjoy 2 way SLI™ or CrossFireX™.
