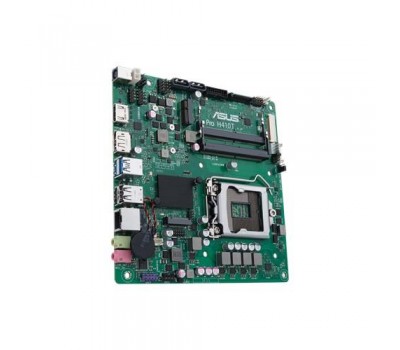

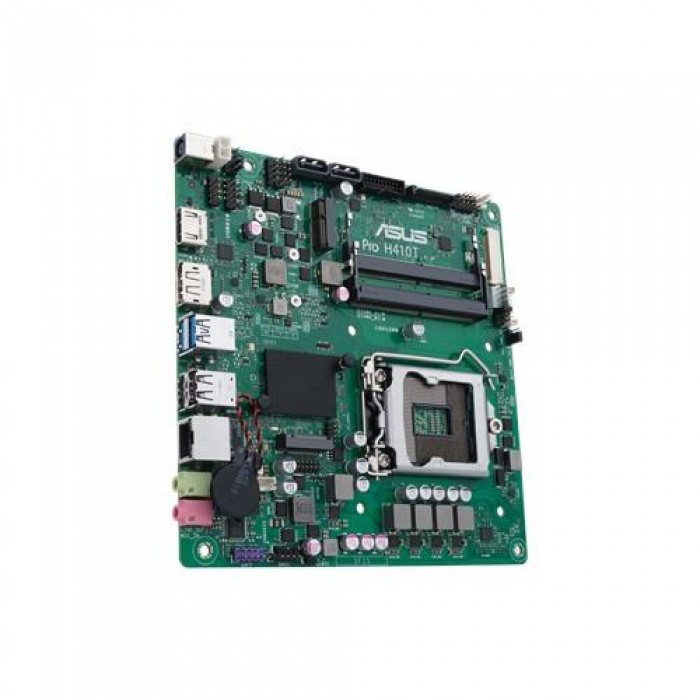

Материнcкая плата ASUS PRO_H410T/CSM s1200 H410 2xDDR4 SO-DIMM M.2 HDMI-DP-LVDS Thin mITX

36
Месяц

CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Supports CPU up to 65 W
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset Intel® H410
• Memory 2 x SO-DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic Integrated Graphics Processor *1
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  1 x LVDS
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Expansion Slots Intel® H410 Chipset
  1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode*
  * The Wi-Fi/BT module is purchased separately
• Storage Total supports 1 x M.2 slot(s) and 2 x SATA 6Gb/s ports
  Intel® H410 Chipset :
  1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
  2 x SATA 6Gb/s port(s)
• LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LANGuard
• Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC *2
  - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• USB Ports Rear USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 7 )
  2 x USB 3.2 Gen 1 port(s)
  5 x USB 2.0 port(s)
• Special Features Bespoke Motherboard Design & Business Focused Features :
  - Overcurrent Protection: Short circuit prevention, protects your system
  - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  - ASUS Event Log: Record activities of system and provides information in BIOS
  - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
• Operating System Support Windows® 10 64-bit
• Back I/O Ports 1 x Realtek RTL8111H 1Gb Ethernet
  1 x DisplayPort
  1 x HDMI
  2 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  2 x Audio jack(s)
  1 x DC power connector(s)
• Internal I/O Ports 1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
  1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  2 x SATA 6Gb/s connector(s)
  1 x SATA power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x 2-pin internal DC power connector
  1 x Stereo speaker connector
  1 x DMIC header
  1 x Backlight inverter voltage selection header
  1 x FPD brightness header
  1 x Panel voltage selection header
  1 x Panel off header
  1 x LVDS connector(s)
  1 x System panel connector
  1 x LPC Debug header
  1 x Speaker connector
• Accessories User's manual
  1 x ACC Express Activation Key Card
  I/O Shield
  Thin Mini ITX I/O Shield
  1 x SATA power cable
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability WOL by PME
• Form Factor Thin Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note *1: Supports up to 2 displays simultaneously
  *2: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
