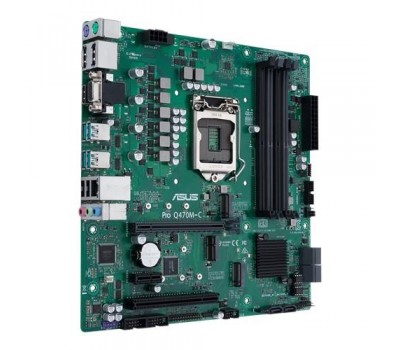

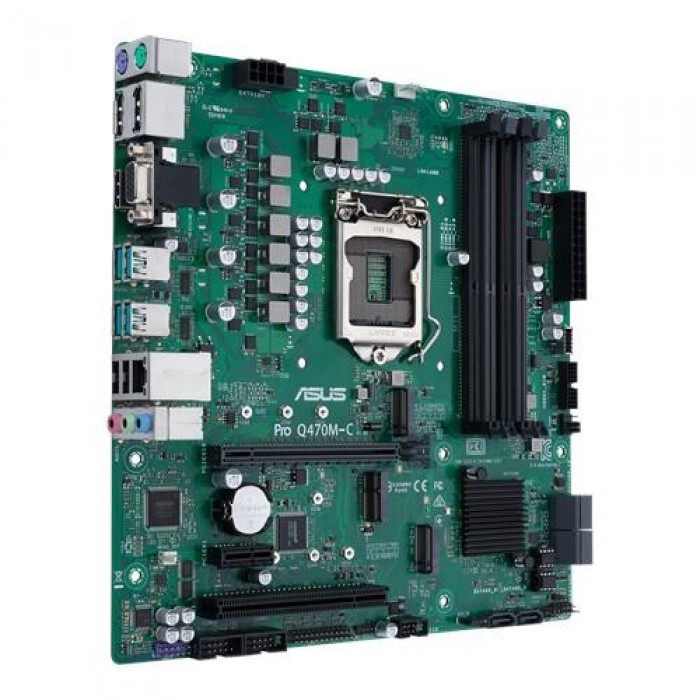

Материнcкая плата ASUS PRO_Q470M-C/CSM s1200 Q470 4xDDR4 M.2 HDMI-DVI-VGA vPro mATX

36
Месяц

CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset Intel® Q470
• Memory 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  OptiMem
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic Integrated Graphics Processor
  2 x DisplayPort 1.4
  1 x HDMI 1.4b
  1 x D-Sub
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Expansion Slots 1 x PCIe 3.0 x16 (x16 mode)
  1 x PCIe 3.0 x1
  1 x PCI
• Storage Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  Intel® Q470 Chipset :
  1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*1
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready
• LAN Intel® I219-LM
  ASUS LANGuard
• Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• USB Ports Rear USB Port ( Total 6 )
  4 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 5 )
  1 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(1 x USB Type-C®)
  2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
• Software Features ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
• ASUS Special Features Bespoke Motherboard Design & Business Focused Features :
  - ASUS Self Recovering BIOS
  - ASUS Event Log
  - ASUS Commercial BIOS kit
  - Anti-Moisture
  -24/7 Reliability
  - Overcurrent Protection
  ASUS EZ DIY
  - Box Headers
  TPM 2.0 IC onboard
• Back I/O Ports 1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  2 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 2 (teal blue)
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x MONO out header
  1 x USB 3.2 Gen 1 front panel TypeC™ connector
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  1 x M.2 with E key for Wi-Fi module
  1 x LPT header
  6 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x DIS ME jumper
  1 x System panel connector
  2 x COM port header
  1 x LPC Debug header
  1 x Speaker connector
• Accessories User's manual
  1 x ACC Express Activation Key Card
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  2 x M.2 Screw Package
  1 x Supporting DVD
• BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Manageability WOL by PME, PXE
• Operating System Windows® 10 64-bit
• Form Factor mATX Form Factor
  9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
• Note *1. When a device in SATA mode is installed on the M.2_1 socket, SATA6G_2 port cannot be used.
  *2. A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
