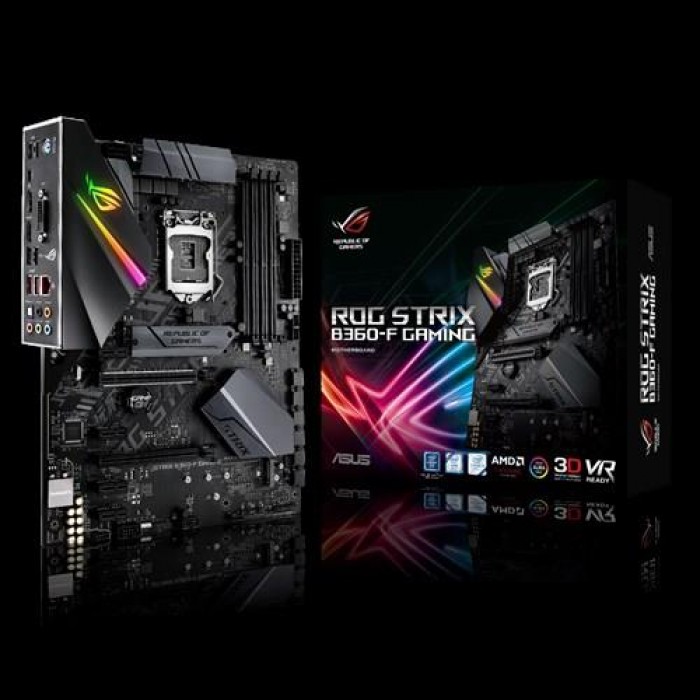

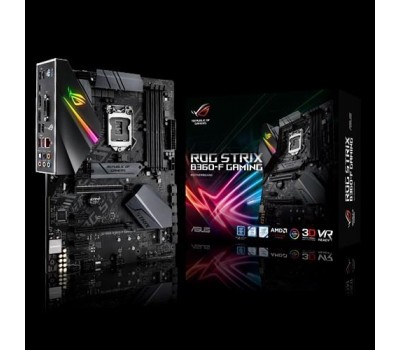

Материнcкая плата ASUS STRIX_B360-F_GAMING s1151 B360 4xDDR4 M.2 HDMI-DVI-DP M.2 Socket 3 ATX

36
Месяц

CPU

Intel® Socket 1151 for 8th Generation Core™ Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

• Chipset Intel® B360
• Memory 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Graphic Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
• Multi-GPU Support Supports AMD 2-Way CrossFireX Technology
• Expansion Slots 8th Generation Intel® Core™ Processor
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  Intel® B360 Chipset
  1 x PCIe 3.0/2.0 x16 (x4 mode) *2
  4 x PCIe 3.0/2.0 x1 *3
• Storage Intel® B360 Chipset :
  1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*4
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s)
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready *5
• LAN Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
  Anti-surge LANGuard
  ROG GameFirst Technology
• Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
  - Dual Headphone Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - SupremeFX Shielding Technology
  - Supports up to 32-Bit/192kHz playback *6
  Audio Feature :
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Link
• USB Ports Intel® B360 Chipset :
  1 x USB 3.1 Gen 2 port(s) (1 at back panel, black, USB Type-CTM, Support 3A power output)
  Intel® B360 Chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, red, Type-A, Support 3A power output)
  Intel® B360 Chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  Intel® B360 Chipset :
  6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board)
• ROG Exclusive Features ROG RAMCache II
  ROG CPU-Z
  ROG CloneDrive
  Overwolf
  GameFirst IV
  ROG Aura
  - Aura Lighting Control
  - Aura RGB Strip Headers
• Special Features Fan Xpert4
  - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
  Gamer's Guardian:
  - ESD Guards on LAN, Audio, KBMS and USB3.1/3.0/2.0 ports
  - DRAM Overcurrent Protection
  - Stainless Steel Back I/O
  - Highly Durable Components
  - SafeSlot
  AURA :
  - Aura Lighting Control
  - Aura RGB Strip Headers
  - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Gaming Aesthetics :
  - 3D printing friendly
  - AURA-RGB Lighting
  Digi+VRM
• Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 2 (black)USB Type-CTM,
  2 x USB 3.1 Gen 2 (red)Type-A
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
• Internal I/O Ports 1 x AAFP connector
  1 x RGB Header(s)
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s connector(s)
  1 x M.2_FAN connector
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s)
  1 x 5-pin EXT_FAN(Extension Fan) connector
  1 x Thermal sensor connector(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
  1 x COM port header
  2 x 3D Mount screw port(s)
• Accessories User's manual
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
  1 x CABLE TIE BLACK
  1 x ROG Strix stickers
  1 x ROG Door Hanger(s)
  1 x Extension Cable for RGB strips (80 cm)
  1 x 3D printing mount package
• BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search
• Manageability WOL, WOR, PXE
• Operating System Windows® 10 64-bit
• Form Factor ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note *1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
  *2 The PCIEX16_2 slot shares bandwidth with PCIEX1_1 and PCIEX1_2 slots. When PCIEX1_1 and PCIEX1_2 slots are occupied, PCIEX16_2 slot runs at x2 mode.
  *3 The M.2_1 socket shares bandwidth with PCIEX1_4
  *4 The M.2_1 socket shares bandwidth with SATA6G_2 port when using M.2 SATA mode device. Adjust BIOS settings to use X2 mode (PCIE only). The M.2_1 socket shares bandwidth with PCIEX1_4
  *5 The M.2_2 socket supports Intel® Optane™ Technology. Intel® Optane™ Technology only supported when using 8th Generation Intel® Processors. Before using Intel® Optane™ memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
  *6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
