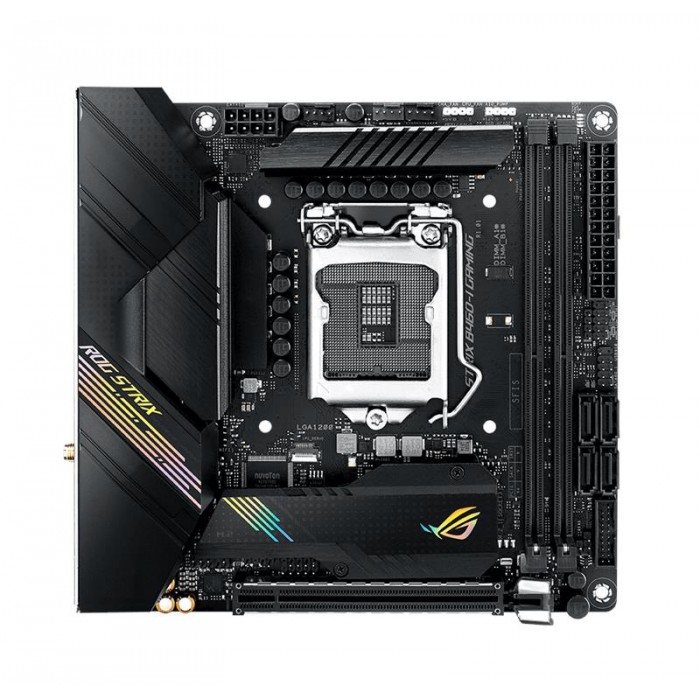

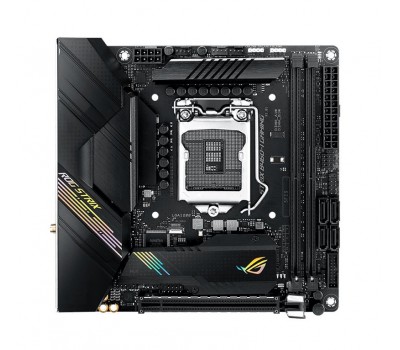

Материнcкая плата ASUS STRIX_B460-I_GAMING s1200 B460 2xDDR4 M.2 HDMI-DP Wi-Fi!!!BT mITX

36
Месяц

CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset Intel® B460
• Memory 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic Integrated Graphics Processor
  1 x DisplayPort 1.4 **
  1 x HDMI 1.4b
  *Graphics specifications may vary between CPU types.
  **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• Expansion Slots Intel® 10th Gen Processors
  1 x PCIe 3.0 x16
• Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
  1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  4 x SATA 6Gb/s port(s)
  Support Raid 0, 1, 5, 10
  Intel® Optane™ Memory Ready
• LAN Intel® I219-V 1Gb Ethernet
  ASUS LANGuard
• Wireless Data Network Intel® Wi-Fi 6 AX200
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  Supports dual band frequency 2.4/5 GHz
  Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  Up to 2.4Gbps transfer speed
• Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
  - Dual OP Amplifiers
  - Impedance sense for front and rear headphone outputs
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  - Supports up to 32-Bit/192kHz playback
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Rear audio USB Type-C® port
  - Premium Japanese audio capacitors
  - Sonic Radar III
  - Sonic Studio III + Sonic Studio Virtual Mixer
  * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB Ports Rear USB Port ( Total 8 )
  1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-CTM)
  6 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  1 x USB 2.0 port(s)(1 x USB Type-C®)
  Front USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 port(s)
  2 x USB 2.0 port(s)
• Software Features [ROG Exclusive Software]
  - RAMCache III
  - ROG CPU-Z
  - GameFirst VI
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - Sonic Radar III
  - DTS® Sound Unbound
  - Overwolf
  - Anti-virus software [ASUS Exclusive Software]
  Armoury Crate
  - Aura Creator
  - Aura Sync
  AI Suite 3
  - Performance And Power Saving Utility:
  -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
  - EZ update
  ASUS CPU-Z
  DAEMON Tools
  WinRAR [UEFI BIOS]
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  FlexKey
• ASUS Special Features Extreme Engine Digi+
  - 5K Black Metallic Capacitors ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  - ASUS Q-Slot ASUS Thermal Solution
  - Aluminum M.2 heatsink ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - Procool
  - Pre-mounted I/O shield
  - SafeSlot AURA Sync
  - Standard RGB header(s)
  - Addressable Gen 2 RGB header(s) Rear audio USB Type-C® connector
• Back I/O Ports 1 x Intel® I219-V 1Gb Ethernet
  1 x DisplayPort
  1 x HDMI
  1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
  6 x USB 3.2 Gen 1
  1 x USB 2.0 *3
  5 x Audio jack(s)
• Internal I/O Ports 1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x AAFP connector
  1 x Aura RGB Strip Headers
  1 x Addressable Gen 2 header(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  2 x M.2 Socket 3
  1 x M.2 with E key for Wi-Fi module
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
• Accessories User's manual
  2 x SATA 6Gb/s cable(s)
  1 x pack of cable tie
  1 x Supporting DVD
  1 x ROG Strix stickers
  1 x Extension cable for Addressable LED
  1 x ROG Thank you card
  1 x Wi-Fi moving antenna
  1 M.2 SSD screw package(s)
  1 ROG key chain
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability WOL by PME, PXE
• Operating System Windows® 10 64-bit
• Form Factor Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note *when M.2_1 is operating in SATA mode, SATA6G_2 will be disabled
  *3 1 x audio USB Type-C®
