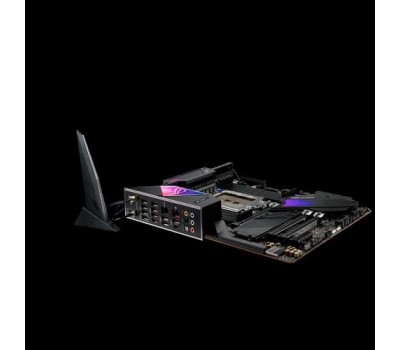

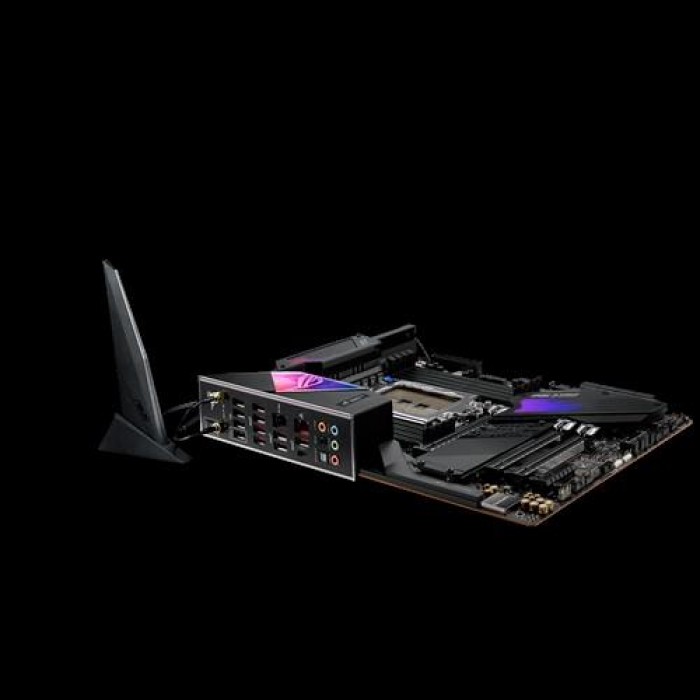

Материнcкая плата ASUS STRIX_TRX40-E_GAMING sTRX4 TRX40 8xDDR4 Wi-Fi!!!BT ATX

36
Месяц

CPU

Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors
* Refer to www.asus.com for CPU support list

• Chipset AMD TRX40
• Multi-GPU Support Supports NVIDIA® 2-Way SLI® Technology
  Supports AMD 2-Way CrossFireX Technology
• Expansion Slots 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
  3 x PCIe 4.0 x16 (x16/x16/x16)
  1 x PCIe 4.0 x4
• Storage 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
  2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
  AMD TRX40 chipset :
  1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  AMD TRX40 chipset :
  8 x SATA 6Gb/s port(s),
  ASMedia® SATA 6Gb/s controller :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN Realtek® RTL8125-CG 2.5G LAN
  Intel® I211-AT, 1 x Gigabit LAN Controller(s)
  Anti-surge LANGuard
  ROG GameFirst V Technology
• Wireless Data Network Intel® Wi-Fi 6 AX200
  Wi-Fi 802.11 ax, Bluetooth® 5.0
  Supports dual band frequency 2.4/5 GHz
  Supports 2x2 MU-MIMO
  Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
• Bluetooth Bluetooth® 5.0
• Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
  - Dual OP Amplifiers
  - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 120 dB SNR stereo playback output 108 dB SNR recording input
  - Supports up to 32-Bit/192kHz playback
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Sonic Studio III + Sonic Studio Virtual Mixer
  - DTS® Sound Unbound
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar III
• USB Ports 3rd Gen AMD Ryzen™ Threadripper™ Processors :
  4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
  AMD TRX40 chipset :
  1 x USB 3.2 Gen 2 front panel connector port(s)
  AMD TRX40 chipset :
  4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
  AMD TRX40 chipset :
  8 x USB 2.0 port(s)
  ASMedia® USB 3.2 Gen 1 controller :
  4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
• ROG Exclusive Features ROG Exclusive Software
  - RAMCache III
  - CPU-Z
  - GameFirst V
  - Sonic Studio III + Sonic Studio Link
  - Sonic Radar III
  - Overwolf
• Special Features 5-Way Optimization by Dual Intelligent Processors 5
  - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
  Gamer's Guardian:
  - DRAM Overcurrent Protection
  - Highly Durable Components
  - DIGI+ VRM
  - SafeSlot
  - ESD Guards on LAN, Audio,and USB ports
  LiveDash OLED 1.3 ”
  AURA :
  - Aura Lighting Control
  - Addressable Gen 2 Header
  ASUS Exclusive Features :
  - USB BIOS FlashBack™
  - AI Suite 3
  - Ai Charger
  - Pre-mounted I/O Shield
  - ASUS NODE: hardware control interface
  - BIOS FlashBack™ Button
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  ASUS Q-Design :
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
• Back I/O Ports 1 x LAN (RJ45) port(s)
  8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C)
  4 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  1 x Anti-surge 2.5G LAN (RJ45) port
  1 x USB BIOS FlashBack™ Button(s)
• Internal I/O Ports 2 x Aura RGB Strip Header
  2 x Addressable Gen 2 header(s)
  2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
  1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
  1 x TPM header
  8 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  1 x CPU OPT Fan connector(s)
  3 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x W_PUMP+ connector
  1 x 24-pin EATX Power connector(s)
  2 x 8-pin ATX 12V Power connector(s)
  0 x Front panel audio connector(s) (AAFP)
  1 x Thermal sensor connector(s)
  1 x Power-on button(s)
  1 x Clear CMOS jumper(s)
  1 x Node Connector(s)
  1 x USB BIOS FlashBack™ button(s)
  1 x System panel connector
  1 x USB 3.2 Gen 2 front panel connector
  1 x Speaker connector
  1 x Chipset Fan Header
  1 x VRM_HS_FAN Header
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Support Disc Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Operating System Windows® 10 64-bit
• Form Factor ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
