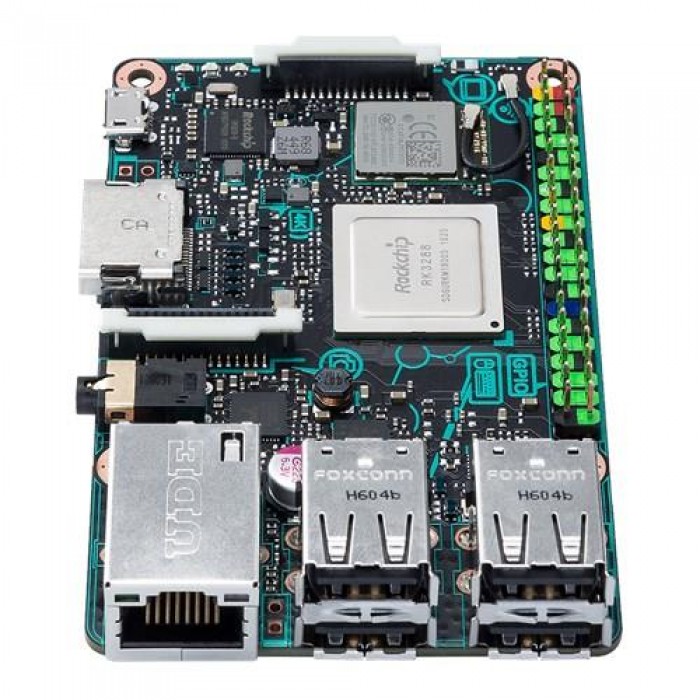

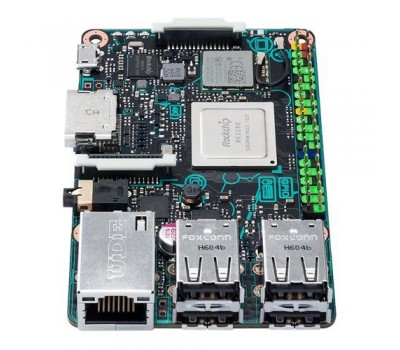

Материнcкая плата ASUS TINKER_BOARD/2GB Quad-Core RK3288 2GB DDR3 SO-DIMM DC Graphics
TOP
-
- Производитель: Asus components
- Доступность: На складе
- Код товара: 104429-01
- Артикул TINKER_BOARD/2GB
Описание
12
Месяц
CPURockchip Quad-Core RK3288 processorMemory2GB Dual Channel DDR3 GraphicIntegrated Graphics Processor ARM® Mali™-T764 GPU*1 StorageMicro SD(TF) card slot LANRTL GB LAN Wireless Data Network802.11 b/g/n, Bluetooth V4.0 + EDR AudioRTL ALC4040 CODEC USB Ports4 x USB 2.0 Internal I/O Ports1 x 40-pin header :
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact pin :
- 1 x PWM
- 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI AccessoriesPassive heatsink*2
User manual Weight55g Note*1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz (up-scaled from 1080P) with H.264/H.265 hardware decoder (update coming soon).
*2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury
Месяц
CPURockchip Quad-Core RK3288 processor
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact pin :
- 1 x PWM
- 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI
User manual
*2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury
