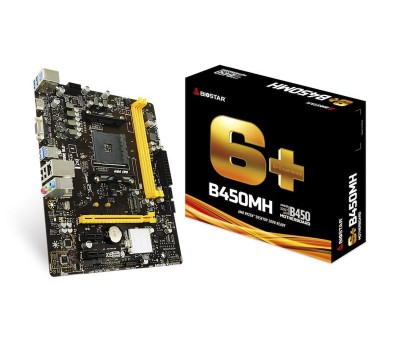

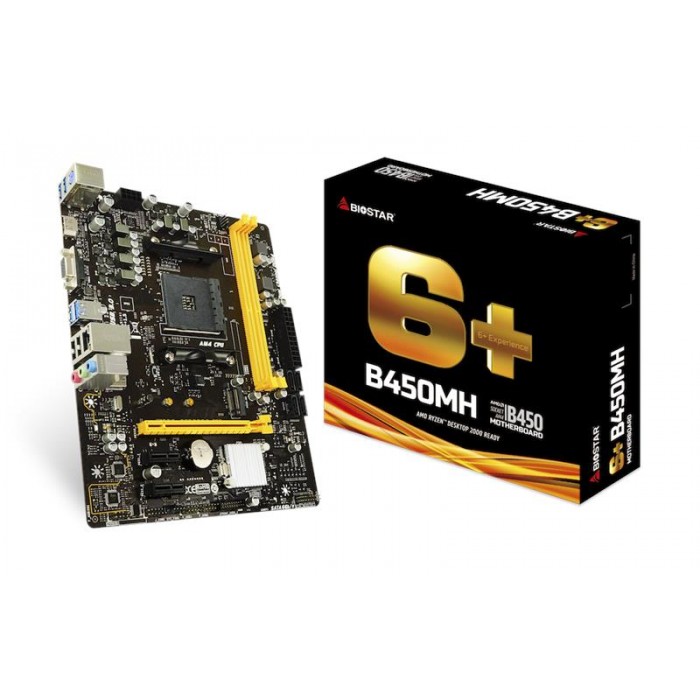

Материнcкая плата Biostar B450MH sAM4 B450 2xDDR4, M.2, HDMI-VGA, mATX
Описание
24
Месяц
Месяц
| Chipset | AMD B450 |
| CPU SUPPORT | AMD A-series APU / Ryzen CPU / NPU for Socket AM4 |
| MEMORY | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz 2 x DDR4 DIMM Memory Slot Max. Supports up to 32GB Memory Each DIMM supports non-ECC 8/16 GB DDR4 module |
| STORAGE | 4 x SATA III Connectors (6Gb/s) : - Supports AHCI & RAID 0, 1, 10 1 x M.2 (M Key) 32Gb/s Connector: - Supports PCI-E (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge) - Supports SATA III (6Gb/s) SSD (A-series APU - Bristol Ridge) |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller Support Super LAN Surge Protection |
| CODEC | Realtek ALC887 7.1-Channel Audio |
| USB | 6 x USB 3.1 Gen1 Ports (5Gb/s) (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot 2 x PCI-E 2.0 x1 Slots |
| REAR I/O | 1 x PS/2 Keyboard/Mouse 4 x USB 3.1 Gen1 (5Gb/s) Ports 2 x USB 2.0 Ports 1 x HDMI Connector ,resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4 1 x VGA Port ,resolution up to 1920 x 1200 @60Hz 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x USB 3.1 Gen1 Header(5Gb/s) (each header supports 2 USB 3.1 Gen1 ports) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA III Connectors (6Gb/s) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x Clear CMOS Header 1 x COM Port Header |
| DIMENSION | Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L ) |
| OS SUPPORT | Support Windows 10(64bit) Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only7(64bit) / 10(64bit) * Biostar reserves the right to add or remove support for any OS with or without notice. |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| Caution!! The specification and pictures are subject to change without notice! | |
