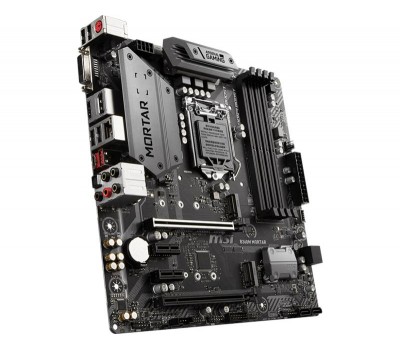

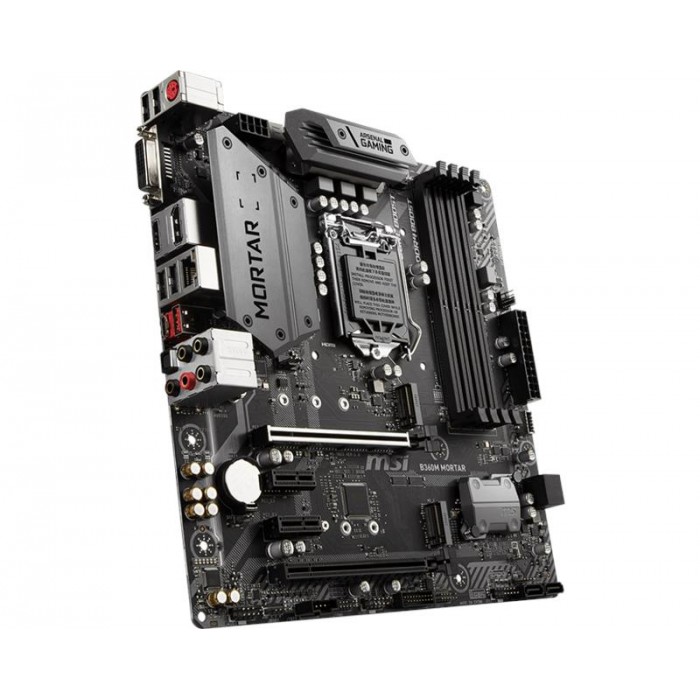

Материнcкая плата MSI B360M_MORTAR s1151 B360 4xDDR4 M.2 HDMI-DVI-DP M.2 S3 mATX

Processor

Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

See supported processors

Chipset

Intel® B360 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz1
• Dual channel memory architecture
• Supports non-ECC UDIMM memorye
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

See supported memory

Slots

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
• 2 x PCIe 3.0 x1 slots

Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1 x DisplayPort, supports a maximum resolution of 4096X2304@60Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz

Storage

Intel® B360 Chipset

• 4 x SATA 6Gb/s ports
• 2 x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices**2
  • Intel® Optane™ Memory Ready ,supported on M2_2 3

1. SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
2. M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

• 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
• 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)

Audio

Dual Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel I219-V Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen2 Type-C port
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 3 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x 5050 RGB LED strip 12V connector
• 1 x Thunderbolt add-on card connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

Back panel ports

1. PS/2 Combo Port
2. DisplayPort
3. LAN Port
4. USB 3.1 Gen2 Type A
5. HD Audio Connectors
6. USB 2.0 Port
7. DVI-D Port
8. HDMI Port
9. USB 2.0 Port
10. USB 3.1 Gen2 Type C
11. Optical S/PDIF OUT

Dimensions

• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
• Micro-ATX Form Factor

Mounting

8 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

1. MSI® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
