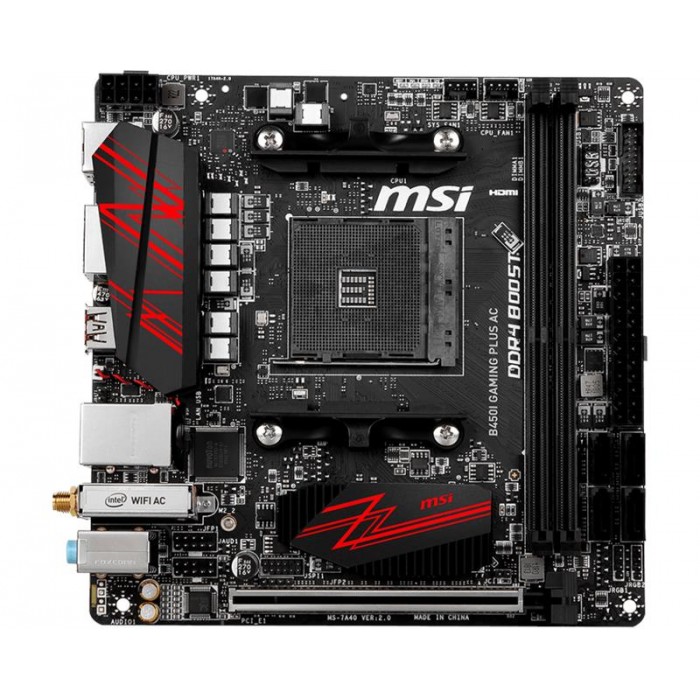

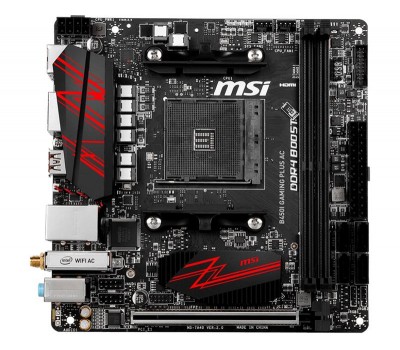

Материнcкая плата MSI B450I_GAMING_PLUS_AC sAM4 B450 2xDDR4 HDMI-DP Wi-Fi!!!BT mITX

36
Месяц

Processor

Supports AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

See supported processors

Chipset

AMD® B450 Chipset

Memory

• 2 x DDR4 memory slots, support up to 32GB
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)

See supported memory

Slots

• 1 x PCIe 3.0 x16 slot
  • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors

Storage

AMD® CPU

• 1 x M.2 ports (M2_1, Key M)
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2280 storage devices

AMD® B450 Chipset

• 4 x SATA 6Gb/s ports

RAID

AMD® B450 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Onboard Graphics

• 1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz,1920x1200 @60Hz1,2
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2

1. Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
2. Maximum shared memory of 2048 MB

USB

AMD® B450 Chipset

• 2 x USB 3.1 Gen1 (SuperSpeed USB 5Gbps) Type-A ports on the back panel
• 4 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AMD® CPU

• 4x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)

Audio

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

WiFi & Bluetooth

• Intel® Dual Band Wireless-AC 3168 module
  • The Wireless module is pre-install in the M2_2 (Key E) slot.
  • Supports Wi-Fi 1x1 802.11ac, dual band (2.4GHz,5GHz) up to 433 Mbps speed.
  • Supports Bluetooth® 4.2, 4.1, BLE, 4.0, 3.0, 2.1, 2.1+EDR

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 2.0 connector (support additional 2 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors

Back panel ports

1. USB 2.0
2. DisplayPort
3. LAN
4. Wi-Fi / Bluetooth
5. HD Audio Connectors
6. PS/2 Combo Port,HDMI
7. HDMI
8. USB 3.1 Gen1
9. USB 3.1 Gen1

Dimensions

• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)
• Mini-ITX Form Factor

Mounting

4 mounting holes

Operating System

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Box content
