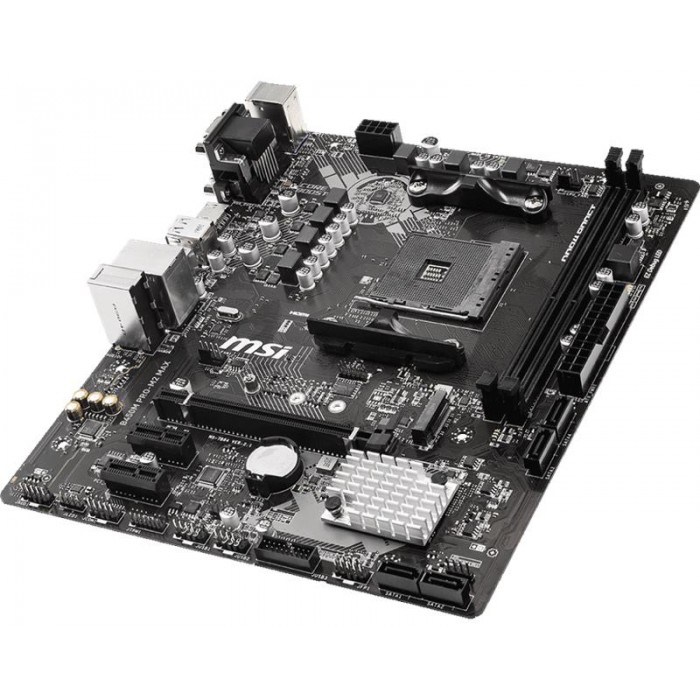

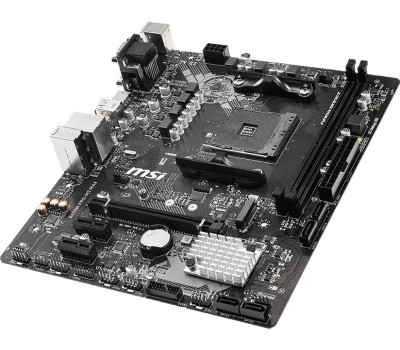

Материнcкая плата MSI B450M_PRO-M2_MAX sAM4 B450 2xDDR4 HDMI-DVI-VGA mATX

36
Месяц

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® B450 Chipset

Memory

• 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
  • For AMD Ryzen Gen3 (R5/R7/R9)
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1
  • For AMD Other CPU
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Slots

• 1 x PCIe 3.0 x16 slot (PCI_E1)
  • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
  • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
  • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
• 2 x PCIe 2.0 x1 slots

Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz1,2

1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processorss
2. Maximum shared memory of 2048 MB

Storage

AMD® B450 Chipset

• 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset

• 2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® processor

• 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x LED strip connector
• 1 x Clear CMOS jumper

Back panel ports

1. Mouse
2. VGA Port
3. USB 2.0
4. LAN Port
5. HD Audio Connectors
6. Keyboard
7. DVI-D Port
8. HDMI Port
9. USB 3.2 Gen1

Dimensions

• 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• m-ATX Form Factor

Mounting

9 mounting holes

Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Box content

1. MSI® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
