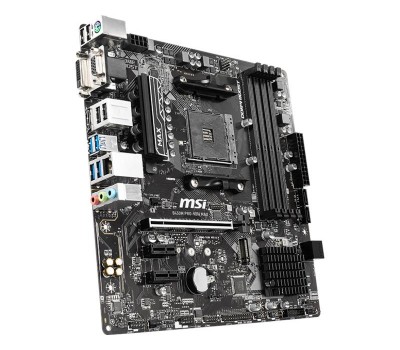

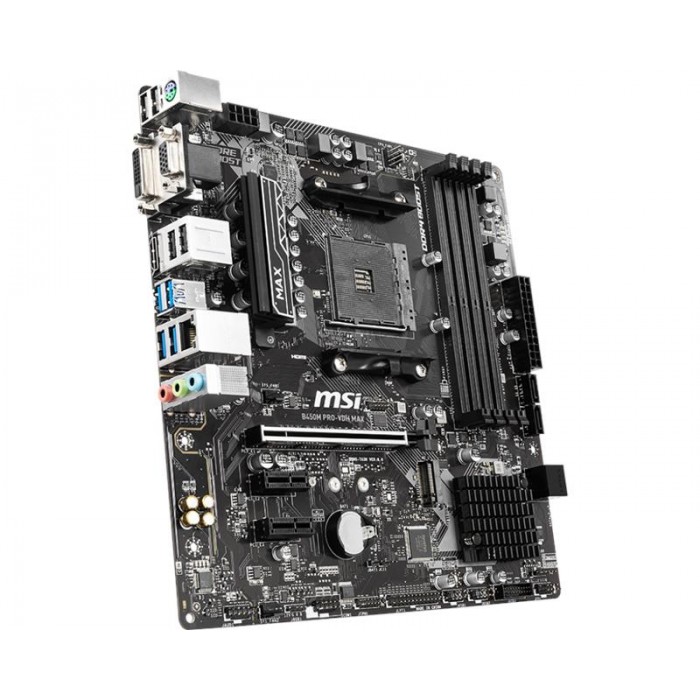

Материнcкая плата MSI B450M_PRO-VDH_MAX sAM4 B450 4xDDR4 HDMI-DVI-VGA mATX

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® B450 Chipset

Memory

• 4 x DDR4 memory slots, support up to 64GB1
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
  • For AMD Ryzen Gen3 (R5/R7/R9)
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866 MHz (by A-XMP OC MODE)
  • For AMD Other Processors
    • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
• Supports Dual Channel mode
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Slots

• 1 x PCIe 3.0 x16 slot
  • 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
  • Athlon™ with Radeon™ Vega Graphics support x4 mode
• 2 x PCIe 2.0 x1 slots

Onboard Graphics

• 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2
