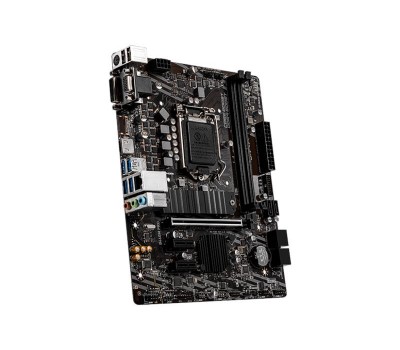

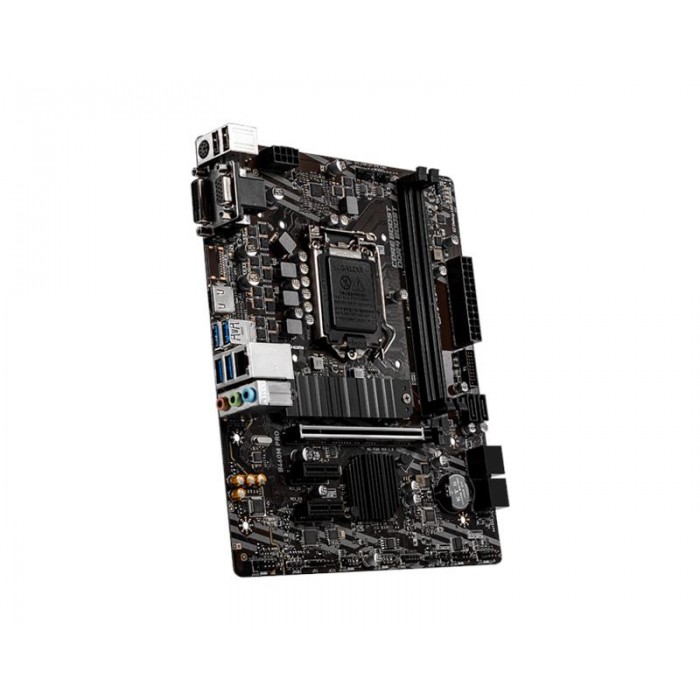

Материнcкая плата MSI B460M_PRO s1200 B460 2xDDR4 M.2 HDMI-DVI-VGA mATX

36
Месяц

CPU

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

Chipset

Intel® B460 chipset

Memory

• 2x DDR4 memory slots, support up to 64GB1
• Intel® Core™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel® Core™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

See supported memory

• Please refer www.msi.com for more information on compatible memory.

Expansion Slot

• 1x PCIe 3.0 x16 slot
• 2x PCIe 3.0 x1 slots

Onboard Graphics

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
• 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

* Maximum shared memory is 1GB

Audio

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

1x Realtek® 8111H Gigabit LAN controller

Storage

Intel® B460 Chipset

• 6x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
  • Intel® Optane™ Memory Ready2
  • Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA2 will be unavailable when installing M.2 SATA SSD in the M.2 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B460 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B460 Chipset

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel,4 ports available through the internal USB 2.0 connectors)

Form Factor

• Miro-ATX Form Factor
• 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm)

BIOS Features

• 1x 128 Mb flash
• UEFI AMI BIOS
• Multi-language

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x TPM module connector
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 4x EZ Debug LED

Back panel Connectors

1. USB 2.0 Type-A ports
2. VGA port
3. LAN port
4. PS/2 keyboard/ mouse combo port
5. DVI-D port
6. HDMI port
7. USB 3.2 Gen1 5Gbps Type-A ports
8. USB 3.2 Gen1 5Gbps Type-A ports
9. Audio jacks

Box content
