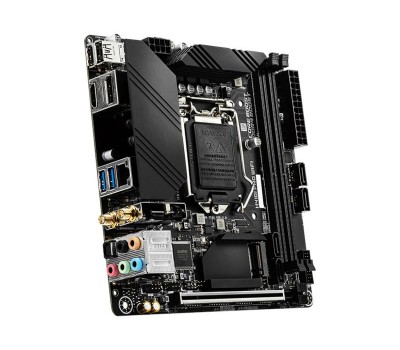

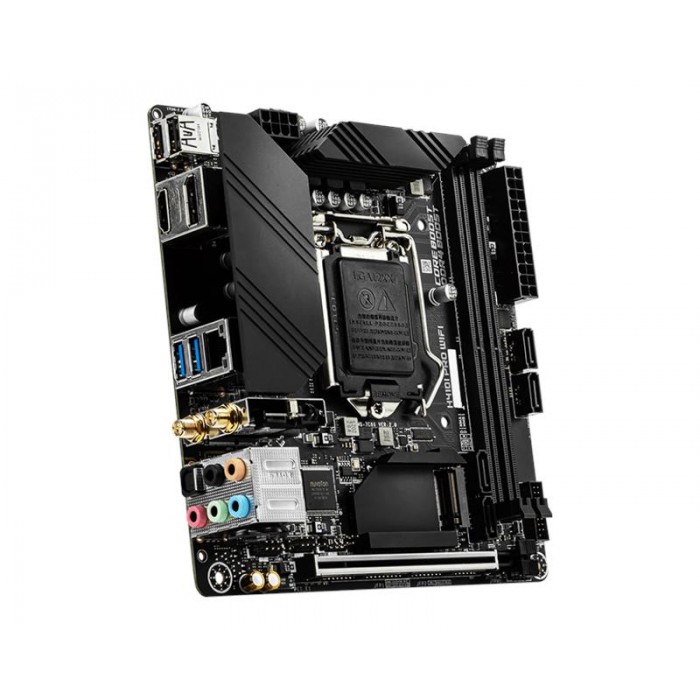

Материнcкая плата MSI H410I_PRO_WIFI s1200 H410 2xDDR4 M.2 HDMI-DP Wi-Fi!!!BT mITX

Processor

Supports Intel® 10th Gen processors for LGA 1200 socket 1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

See supported processors

Chipset

Intel® H410 Chipset

Memory

• 2x DDR4 memory slots, support up to 64GB1
• Intel® Core™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel® Core™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

• 1x PCIe 3.0 x16 slot (From CPU)

Onboard Graphics

• 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz

Storage

Intel® H410 Chipset

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • Supports PCIe 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2280 storage devices

USB

Intel® H410 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
• 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector)

Audio

Realtek® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Intel® 1219V Gigabit LAN Controller

Wireless LAN & Bluetooth®

Intel® 3168NGW

• The Wireless module is pre-installed in the M.2 (Key-E slot
• Supports 802.11 a/ b/ g/ n/ ac
• Supports Bluetooth® 4.2

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slot (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 1x System panel connector
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x Chassis Intrusion connector

Back panel ports

1. DisplayPort
2. LAN
3. Wireless / Bluetooth
4. Audio Connectors
5. USB 2.0
6. HDMI
7. USB 3.2 Gen 1 5Gbps Type-A
8. Optical S/PDIF OUT

Dimensions

• Mini-ITX Form Factor
• 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Mounting

4 mounting holes

Operating System

Support for Windows® 10 64-bit

Box content

1. MSI® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
