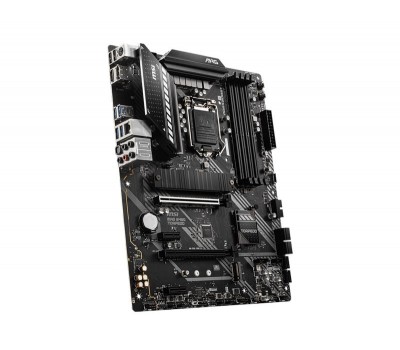

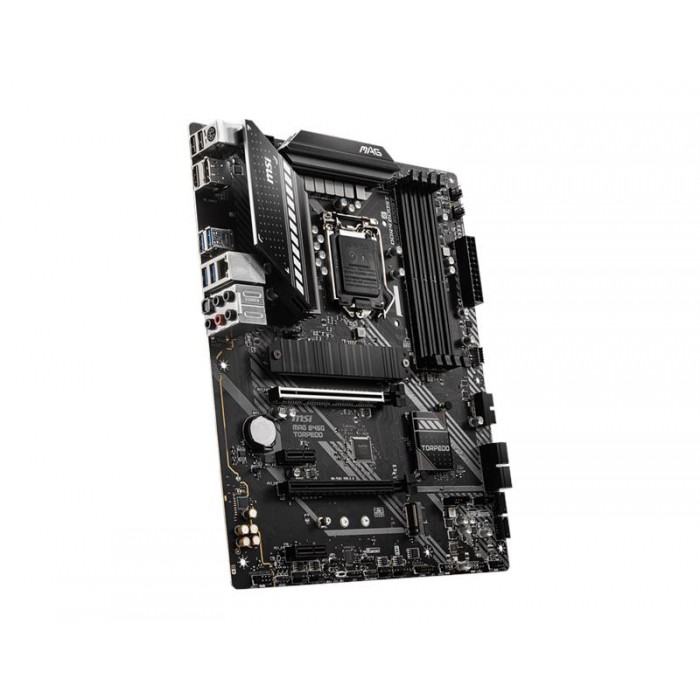

Материнcкая плата MSI MAG_B460_TORPEDO s1200 B460 4xDDR4 M.2 HDMI-DP ATX

CPU

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

1. Please go to intel.com for compatibility information
2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

Chipset

Intel® B460 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB 1
• Intel® Core™ i7/i9
  • Supports up to DDR4 2933 MHz
• Intel® Core™ i5 (Below)
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

• 1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
• 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 1
• 2x PCIe 3.0 x1 slots (From PCH)

1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.

Onboard Graphics

• 1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
• 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz

Storage

Intel® B460 Chipset

• 6x SATA 6Gb/s ports 1
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices 2
  • Intel® Optane™ Memory Ready (M2_2 only)3
  • Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot.
3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B460 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B460 Chipset

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector)
• 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Audio

Realtek® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek® RTL8125B 2.5Gbps LAN controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 2x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x RTD3 connector
• 1x TBT connector1

1. Thunderbolt card need support RTD3

Back panel ports

1. Keyboard / Mouse
2. DisplayPort
3. 2.5G LAN Port
4. HD Audio Connectors
5. USB 2.0
6. HDMI
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 3.2 Gen 1 5Gbps Type-A
9. Optical S/PDIF OUT

LED Features

• 1x EZ LED Control switch
• 4x EZ Debug LED

I/O Controller

NUVOTON NCT6687 Controller Chip

Hardware Monitor

• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

Form Factor

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

BIOS Features

• 1x 128 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SM BIOS 3.2 •Multi-language

Box content

1. MSI® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
