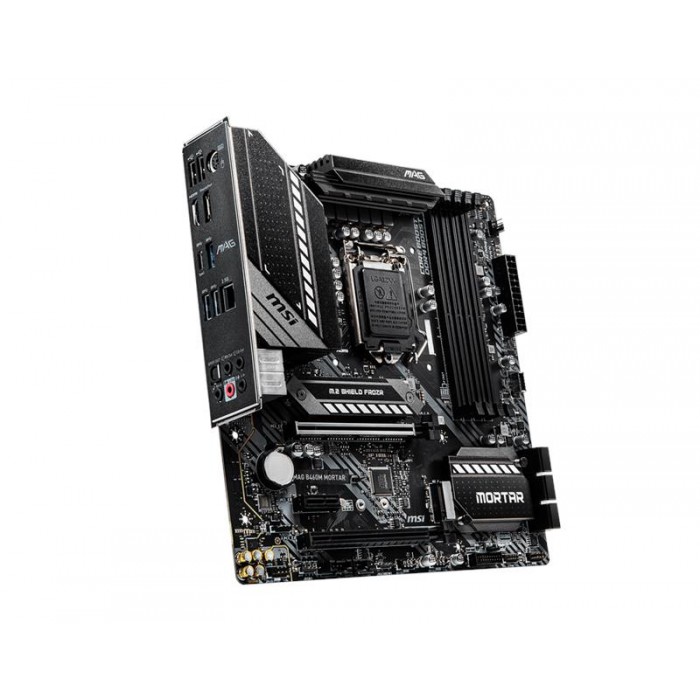

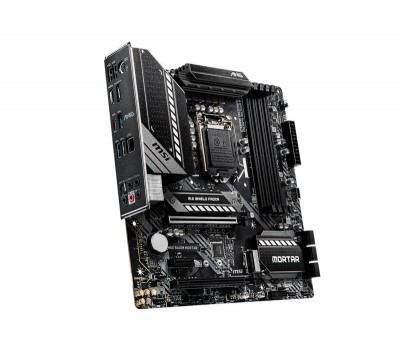

Материнcкая плата MSI MAG_B460M_MORTAR s1200 B460 4xDDR4 M.2 HDMI-DP mATX

CPU

Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket 1 2

1. Please go to intel.com for compatibility information
2. Onboard graphics output are disabled when using the F SKU processors.

See supported processors

Chipset

Intel® B460 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB 1
• Intel® Core™ i7/i9
  • Support DDR4-2933 Memory (Max.)
• Intel® Core™ i5 (Below)
  • Supports DDR4-2666 Memory (Max.)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

• 1x PCIe 3.0 x16 slot (from CPU)
• 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
• 1x PCIe 3.0 x1 slot (from PCH)

Onboard Graphics

• 1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
• 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

Storage

Intel® B460 Chipset

• 6x SATA 6Gb/s ports 1
• 2x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready2
  • Supports Intel® Smart Response Technology for Intel Core™ processors

1. SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® B460 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel® B460 Chipset

• 2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)
• 5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

Audio

Realtek® ALC1200 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Realtek® RTL8125B 2.5G LAN Controller

Internal connectors

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 3.2 Gen 1 5Gbps Type-C connector
• 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water pump connector
• 2x 4-pin system fan connectors
• 1x front panel audio connector
• 2x system panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x 4-pin RGB LED connector
• 1x 3-pin RAINBOW LED connector
• 1x TBT connector 1
• 1x RTD3 connector1

1. Thunderbolt card need support RTD3

Back panel ports

1. PS/2 Combo Port
2. DisplayPort
3. USB 3.2 Gen 1 5Gbps(Type-A)
4. 2.5G LAN Port
5. HD Audio Connectors
6. USB 2.0 Ports
7. HDMI Port
8. USB 3.2 Gen 1 5Gbps(Type-C)
9. USB 3.2 Gen 1 5Gbps(Type-A)
10. Optical S/PDIF OUT

I/O Controller

NUVOTON NCT6687 Controller Chip

Hardware Monitor

• CPU/System temperature detection
• CPU/System fan speed detection
• CPU/System fan speed control

Form Factor

• mATX Form Factor
• 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)

BIOS Features

• 1x 128 Mb flash
• UEFI AMI BIOS
• ACPI 6.2, SM BIOS 3.2 •Multi-language

Box content
