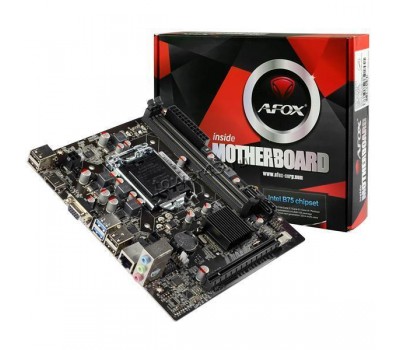

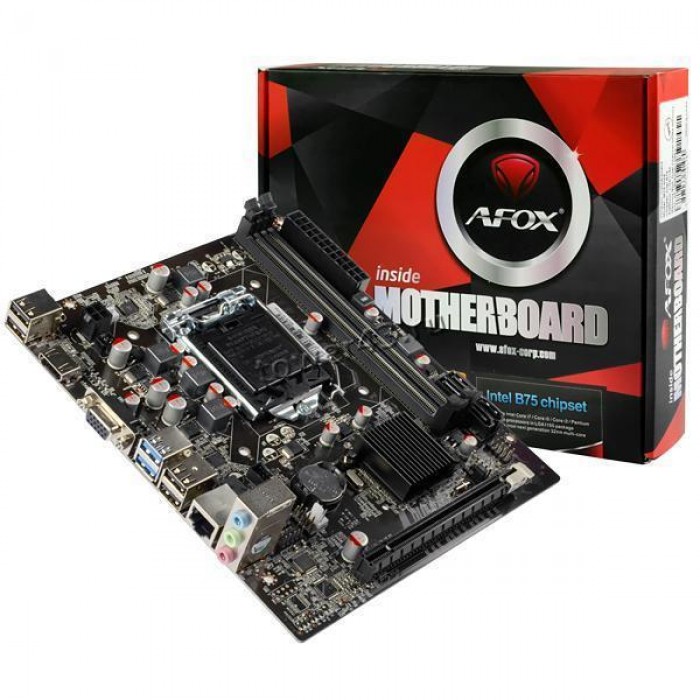

Материнская плата AFOX IB75-MA5 s1155, B75, 2xDDR3 1xPCIe16, HDMI-VGA, USB3.0, mATX
Описание
24
Месяц
Месяц
| Платформа | INTEL® Socket 1155 |
| Чипсет | Intel® B75 |
| Поддержка процессоров | Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors |
| 1066/1333/1600MHz | |
| Поддержка памяти | Dual Channel DDR3 1066/1333/1600MHz |
| 2 x Memory Slots (Max. capacity of system memory 16GB) | |
| Интегрированная графика | Integrated Graphics Processor |
| Слоты расширения | 1 x PCI Express x16 3.0 slot |
| SATA | 1 x SATA3, 3 x SATA2 |
| Аудио | Realtek 662 on board, Supports 6-channel audio-out |
| Сеть | Realtek RTL8105/8106 10/100Mbps Ethernet on board |
| Разъёмы на задней панели | 1 x HDMI Port |
| 1 x D-Sub (VGA) Port | |
| 2 x USB 3.0 Ports | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 3 x HD Audio Jack (Line in / Front Speaker / Microphone) | |
| Интегрированные разъёмы | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) |
| 1 x Front Panel Audio pinheader | |
| Форм-фактор | Micro-ATX (17*19cm) |
| Аксессуари | 1 x SATA cable |
| 1 x I/O Rear Panel | |
| 1 x User Manual | |
| 1 x Driver CD |
