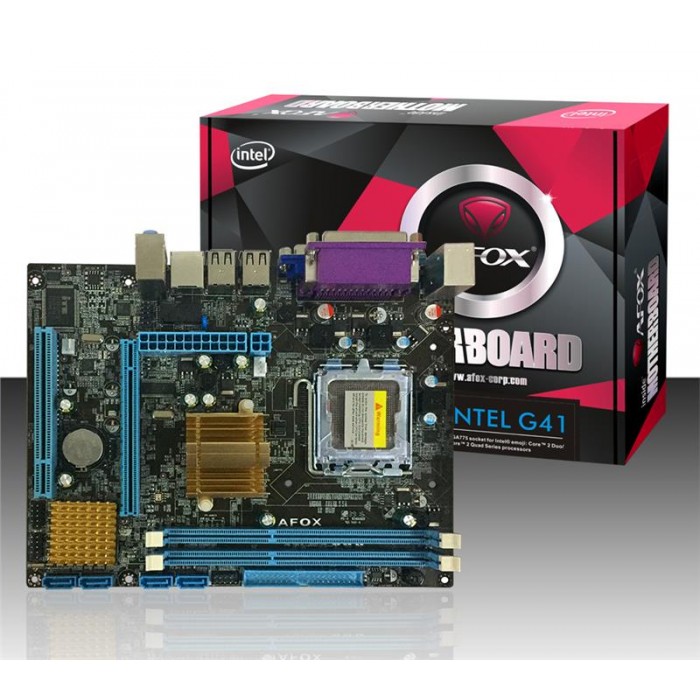

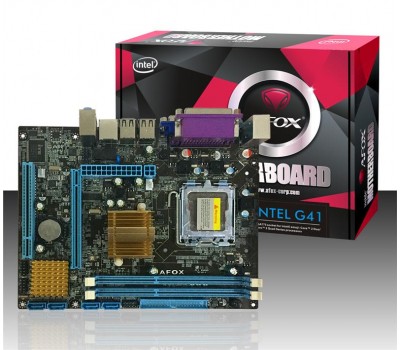

Материнская плата AFOX IG41-MA7 s775, G41 (!), 2xDDR3 1xPCIe16, VGA, mATX
Описание
24
Месяц
Месяц
| Платформа | INTEL® Socket 775 | |
| Чипсет | Intel® G41 Express Chipset + ICH7 | |
| Поддержка процессоров | Intel Core™ 2 Duo / Core™ Duo / Pentium® D / Pentium® 4 / Celeron® D Processors | |
| 1066/1333/1600MHz | ||
| Поддержка памяти | Dual Channel DDR3 1066/1333/1600MHz | |
| 2 x Memory Slots (Max. capacity of system memory 16GB**) **Actual capacity depends on different CPU installation | ||
| Интегрированная графика | Integrated Intel® GMA X4500 graphics | |
| Слоты расширения | 1 x PCI Express x16 slot | |
| SATA | 4 x SATA2 | |
| Аудио | Realtek 662 on board, Supports 6-channel audio-out | |
| Сеть | Realtek RTL8105 10/100Mbps Ethernet on board | |
| Разъёмы на задней панели | 1 x D-Sub (VGA) | |
| 6 x USB 2.0 Ports | ||
| 1 x RJ-45 LAN Port | ||
| 3 x HD Audio Jack (Line in / Front Speaker / Microphone) | ||
| Интегрированные разъёмы | 1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) | |
| 1 x Front Panel Audio pinheader | ||
| Форм-фактор | Micro-ATX (17*19cm) | |
| Аксессуары | 1 x SATA cable | |
| 1 x I/O Rear Panel | ||
| 1 x User Manual | ||
| 1 x Driver CD |
