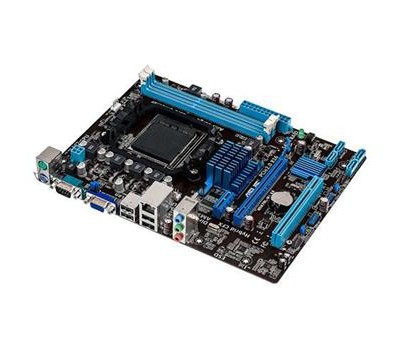

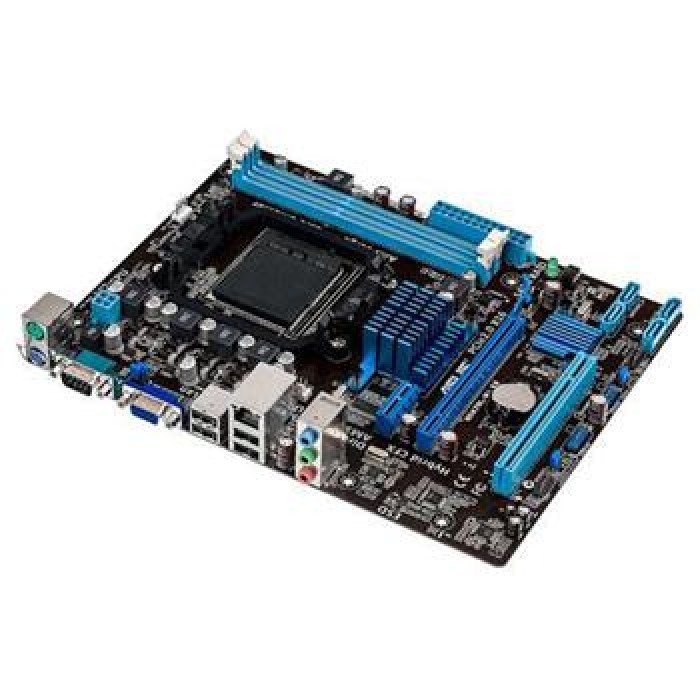

Материнская плата ASUS M5A78L-M-LX3, sAM3+, 760G (780L)/SB710, 2xDDR3, Core Unlocker, VGA/COM, mATX

36
Месяц
CPU

AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors

Supports CPU up to 95 W

AMD Cool 'n' Quiet™ Technology



Chipset

AMD 760G (780L)/SB710



Memory

2 x DIMM, Max. 16GB, DDR3 1866/1600/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.

* AMD FX Series CPU on this motherboard supports up to DDR3 1866MHz as its standard memory frequency.

* Due to CPU spec., AMD AM3 CPUs on this motherboard support up to DDR3 1333MHz.



System Bus

Up to 5.2 GT/s HyperTransport™ 3



Graphic

Integrated ATI Radeon™ HD 3000 GPU

VGA output support : RGB port

- Supports RGB with max. resolution 2560 x 1440 @ 75 Hz

Maximum shared memory of 1024 MB

Hybrid CrossFireX™ Support *1

Supports DirectX 10



Expansion Slots

1 x PCIe 2.0 x16

1 x PCIe 2.0 x1

1 x PCI



Storage

AMD SB710 controller :

4 x SATA 3Gb/s port(s), blue

Support Raid 0, 1, 10, JBOD



LAN

Qualcomm Atheros 8161/8171, 1 x Gigabit LAN Controller(s)



Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC *2



USB Ports

Built-in Controller :

8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)



Special Features

ASUS EPU :

- EPU

Core Unlocker

ASUS Exclusive Features :

- Anti-Surge

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS MyLogo 2



Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x D-Sub

1 x LAN (RJ45) port(s)

4 x USB 2.0

1 x COM port(s)

3 x Audio jack(s)



Internal I/O Ports

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

4 x SATA 3Gb/s connector(s)

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x System panel(s)



Accessories

User's manual

I/O Shield

2 x SATA 3Gb/s cable(s)



BIOS

16 Mb Flash ROM, AMI BIOS , PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a



Support Disc

Drivers

ASUS PC Probe II

ASUS Update

Anti-virus software (OEM version)



Form Factor

uATX Form Factor

9.6 inch x 7.4 inch ( 24.4 cm x 18.8 cm )



Note

*1-1: For Windows Vista or later versions.

*1-2: Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.

*2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
