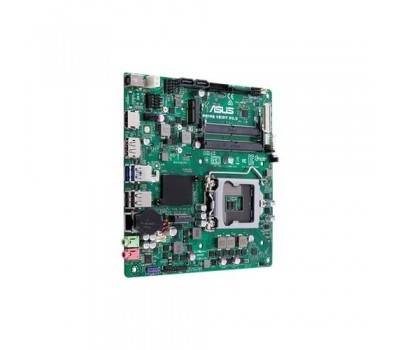

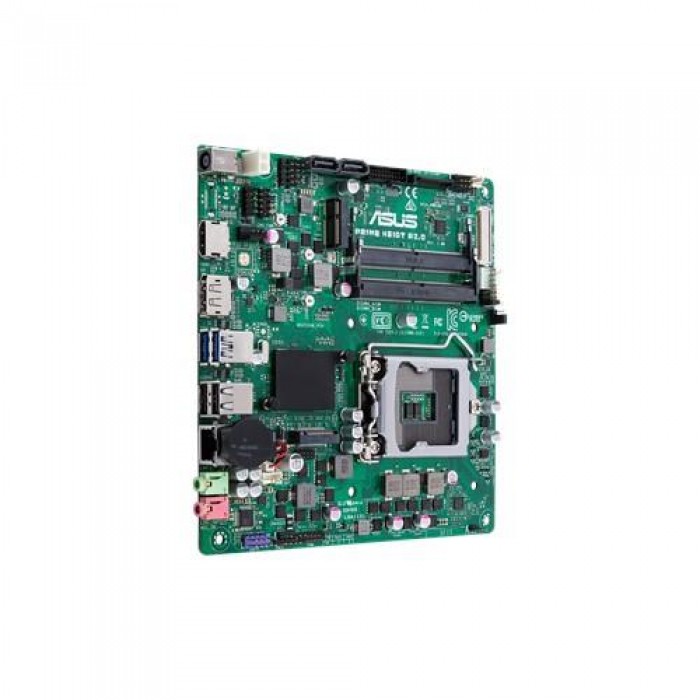

Материнская плата ASUS PRIME_H310T_R2.0 s1151 H310 2xDDR4 SO-DIMM, HDMI-DP-LVDS, mITX DC power CSM

36
Месяц

Поддерживаемые процессоры

Intel® for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
Supports CPU up to 65 W
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

• Чипсет Intel® H310
• Память 2 x SO-DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Видеокарта Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/LVDS/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 2 displays simultaneously
• Слоты расширения 1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
• Накопитель Intel® H310 Chipset :
  1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
  2 x SATA 6Gb/s port(s)
• LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Аудио Realtek® ALC887 8-Channel High Definition Audio CODEC *1
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Порты USB Intel® H310 Chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® H310 Chipset :
  4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
  GL852G USB Hub :
  3 x USB 2.0 port(s) (Type-A, 3 at mid-board)
• Специальные функции Bespoke Motherboard Design & Business Focused Features :
  - Overcurrent Protection: Short circuit prevention, protects your system
  - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  - ASUS Event Log: Record activities of system and provides information in BIOS
  - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
  - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
  Digi+VRM
• Поддержка ОС Windows® 10
• Входы/выходы на задней панели 1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 (blue)
  2 x USB 2.0
  2 x Audio jack(s)
  1 x DC power connector(s)
• Внутренние разъемы 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
  1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
  1 x COM port(s) connector(s)
  2 x SATA 6Gb/s connector(s)
  1 x SATA power connector(s)
  1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x 2-pin internal DC power connector
  1 x Stereo speaker connector
  1 x DMIC header
  1 x Backlight inverter voltage selection header
  1 x FPD brightness header
  1 x Panel voltage selection header
  1 x Panel off header
  1 x LVDS connector(s)
  1 x 14-1 pin TPM connector
  1 x System panel connector
  1 x Speaker connector
• Аксессуары User's manual
  I/O Shield
  Thin Mini ITX I/O Shield
  1 x SATA power cable
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ErP Ready, ASUS Self- Recovering BIOS, ASUS Event log, ASUS Commercial Kit
• Управляемость WfM 2.0, DMI 2.0, WOL by PME
• Диск поддержки Drivers
  ASUS Utilities
  ASUS Watch dog timer
  ASUS Commercial BIOS Kits
  Anti-virus software (OEM version)
• Форм-фактор Thin Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Примечание *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Use with amplified speaker is suggested.
