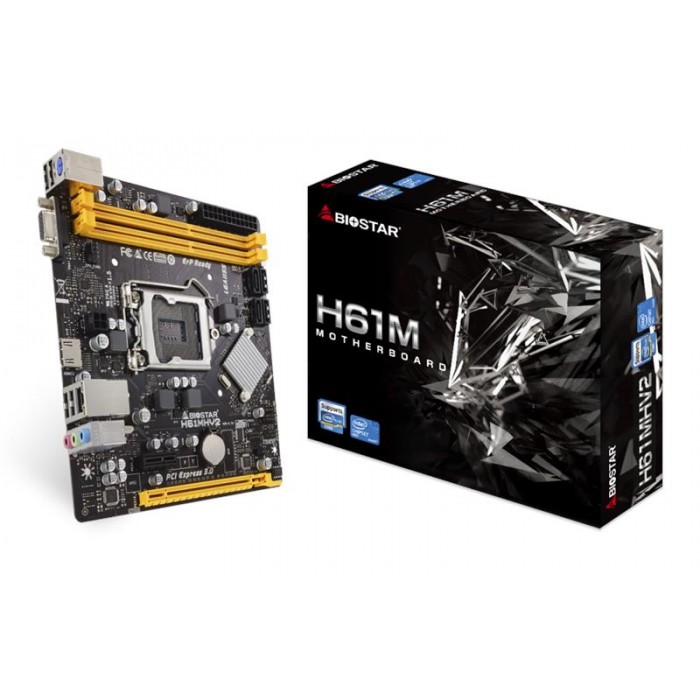

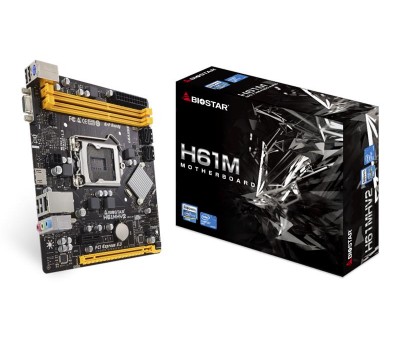

Материнская плата Biostar H61MHV2 s1155 H61 2xDDR3 VGA-HDMI mATX
Описание
24
Месяц
Месяц
| Chipset | Intel H61 |
| CPU SUPPORT | Intel® Core™ i7 LGA 1155 Processor Intel® Core™ i5 LGA 1155 Processor Intel® Core™ i3 LGA 1155 Processor Intel® Pentium® LGA 1155 Processor Intel® Celeron® LGA 1155 Processor *Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Support Dual Channel DDR3 1600/ 1333 /1066 MHz 2 x DDR3 DIMM Memory Slots Max. Supports up to 16GB Memory |
| INTEGRATED VIDEO | By CPU model |
| STORAGE | 4 x SATA II Connectors (3Gb/s) |
| LAN | Realtek RTL8111H - 10/100/1000Mb/s Controller |
| AUDIO CODEC | Realtek ALC662 5.1-Channel HD Audio |
| USB | 8 x USB 2.0 Ports (4 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCI-E 3.0 x16 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU) 1 x PCI-E 2.0 x1 Slot |
| REAR I/O | 1 x PS/2 Keyboard Port 4 x USB 2.0 Ports 1 x HDMI Port 1 x VGA Port 1 x LAN Port 3 x Audio Jacks |
| INTERNAL I/O | 1 x Chassis Speaker Connector 1 x Clear CMOS header 1 x Power Connector (24pin) 1 x Power Connector (4pin) 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports) 4 x SATA II 3Gb/s Connectors 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 17cm x 19.1cm ( W x L ) |
| OS SUPPORT | Support Windows XP / Vista / 7/ 8/ 8.1/ 10 ?Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | BIO-Remote2 |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide |
| FEATURES | Supports BIOS-Flasher Supports Charger Booster |
| Caution!! The specification and pictures are subject to change without notice! | |
