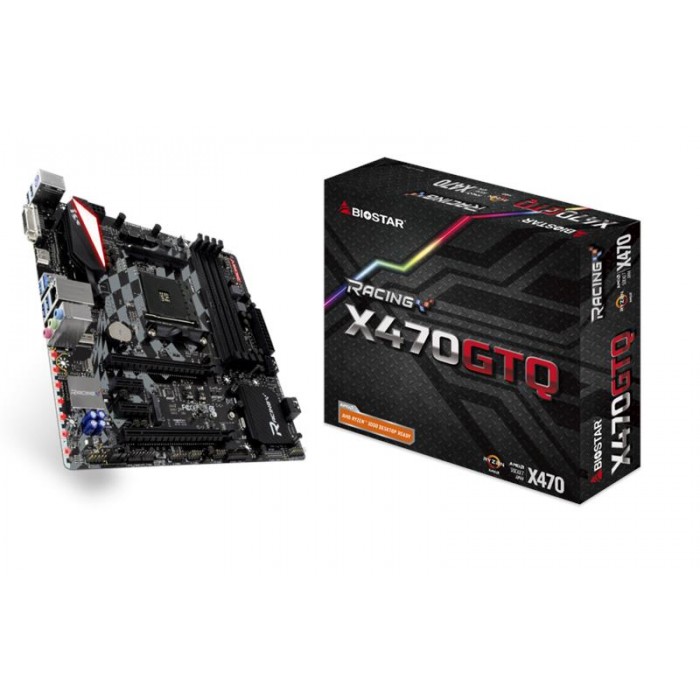

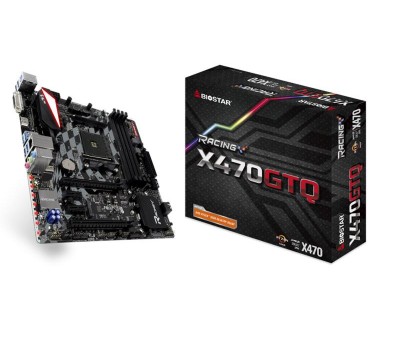

Материнская плата Biostar Racing X470GTQ sAM4 X470 4xDDR4 HDMI-DVI, M.2, 7.1-CH, mATX
Описание
24
Месяц
Месяц
| Chipset | AMD X470 |
| CPU SUPPORT | Socket AM4 supports AMD® A-series APU, Ryzen APU / CPU * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) 4 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/16 GB DDR4 module * DDR4 - 2667 only for Ryzen CPU. * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | 4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1x M.2 (M Key) : Supports PCI-E 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD * M.2 : The bandwidth is depended on CPU. |
| LAN | Realtek RTL 8118AS 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability Support Super LAN Surge Protection |
| CODEC | ALC887 7.1 Channels, High Definition Audio, Hi-Fi(Front) |
| USB | 2x USB 3.1 Gen2 (10Gb/s) port (2 on rear I/Os) 6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal headers) 4x USB 2.0 port (4 via internal headers) |
| EXPANSION SLOT | 2x PCIe 2.0 x1 Slot 1x PCIe 2.0 x16 Slot (x1) 1x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU) |
| REAR I/O | 1x PS/2 Keyboard 1x DVI-D Port 1x HDMI Port 1x LAN port 2x USB 3.1 Gen2 (10Gb/s) Port 4x USB 3.1 Gen1 (5Gb/s) Port 3x Audio Jack |
| INTERNAL I/O | 4x SATA III 6.0Gb/s Connector 2x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports) 1x 8-Pin Power Connector 1x 24-Pin Power Connector 1x CPU Fan Connector 2x System Fan Connector 1x Front Panel Header 1x Front Audio Header 1x Clear CMOS Header 1x S/PDIF out Connector 1x COM Port Header 2x 5050 LED Header |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU1 / System1 / System2 Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 244 mm x 238 mm ( W x L ) |
| OS SUPPORT | Support Windows 10(x64) Support Windows 7 (x64) for Bristol / Summit /Pinnacle Ridge only * Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | Racing GT Utility FLY.NET BullGuard |
| ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| FEATURES | VIVID LED DJ 5050 LED FUN ZONE Supports 100% Solid capacitor PCIe M.2 32Gb/s |
| Caution!! The specification and pictures are subject to change without notice! | |
