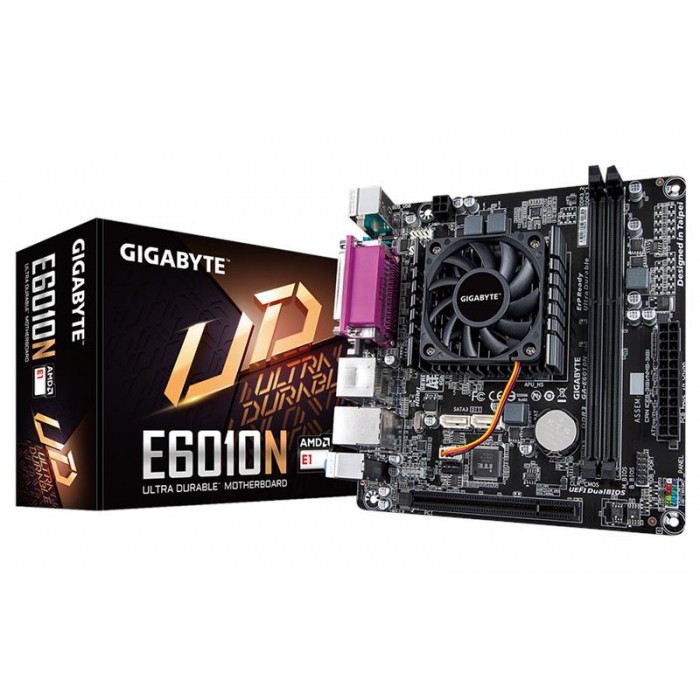

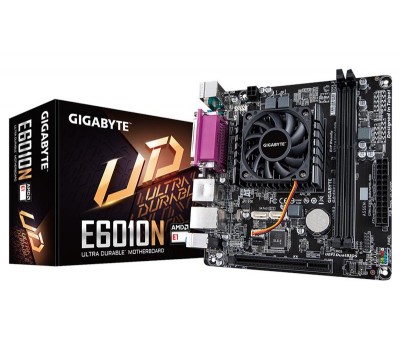

Материнская плата GIGABYTE GA-E6010N CPU AMD E1-6010 DC 1.35GHz 2xDDR3 HDMI-VGA COM/LPT mITX

36
Месяц

• APU
  1. Built in an AMD® E1-6010 (1.35 GHz) APU with Radeon™ R2 graphics SoC
     * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
  2. 2MB L2 cache
• Memory
  1. 2 x DDR3 DIMM sockets supporting up to 32 GB of system memory
     * The maximum 32 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
  2. Support for DDR3 1333/1066 MHz memory modules
  3. (Please refer "CPU Support List" for more information.)
• Onboard Graphics Integrated in the SoC:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160
     * Support for HDMI 1.4a version.
  3. Maximum shared memory of 2 GB
• Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  4. Support for S/PDIF Out
• LAN
  1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
• Expansion Slots
  1. 1 x PCI slot
• Storage Interface Integrated in the SoC:
  1. 2 x SATA 6Gb/s connectors
• USB Integrated in the SoC:
  1. 2 x USB 3.1 Gen 1 ports on the back panel
  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 1 x APU fan header
  5. 1 x system fan header
  6. 1 x front panel header
  7. 1 x front panel audio header
  8. 1 x S/PDIF Out header
  9. 2 x USB 2.0/1.1 headers
  10. 1 x serial port header
  11. 1 x chassis intrusion header
  12. 1 x Clear CMOS jumper
• Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x parallel port
  3. 1 x serial port
  4. 1 x D-Sub port
  5. 1 x HDMI port
  6. 2 x USB 3.1 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks
• I/O Controller
  1. iTE® I/O Controller Chip
• H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 2 x 64 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress Install
• Bundled Software
  1. Norton® Internet Security (OEM version)
• Operating System
  1. Support for Windows 10 64-bit
  2. Support for Windows 7 64-bit
     * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
• Form Factor
  1. Mini-ITX Form Factor; 17.0cm x 17.0cm
• Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
