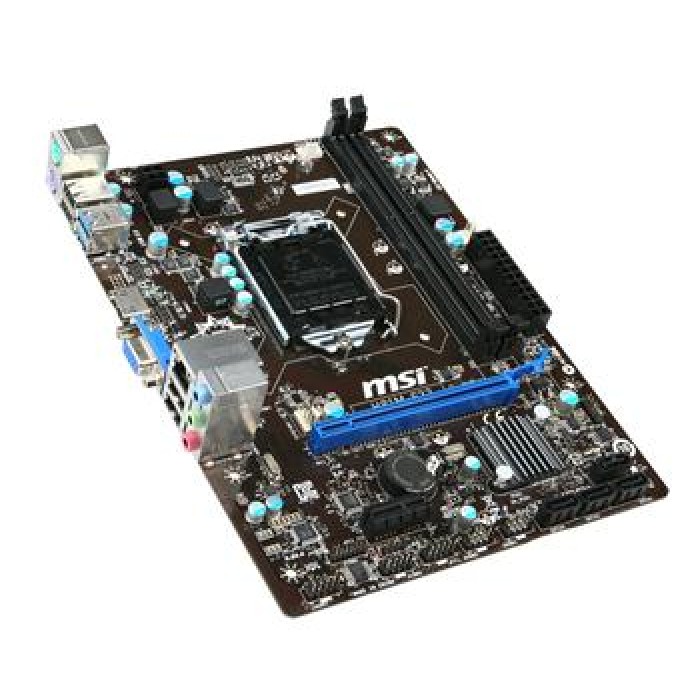

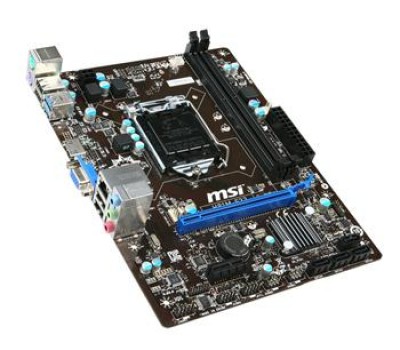

Материнская плата MSI H81M-E33,s1150,2xDDR3, VGA-HDMI mATX

36
Месяц


Main Memory



• Support two DDR3 DIMMs 1066/1333/1600 MHz, up to 16GB Max

- Supports Dual-Channel mode























Slots



• 1 x PCIe 2.0 x16 slot

• 1 x PCIe x1 slot























On-Board SATA



• SATAIII controller integrated in Intel® H81 chipset

- Up to 6Gb/s transfer speed.

- Supports two SATAIII ports (SATA1~2) by H81



• SATAII controller integrated in Intel® H81 chipset

- Up to 3Gb/s transfer speed.

- Supports two SATAII ports (SATA3~4) by H81























USB 3.0





• 2 x USB 3.0 ports on the back panel (rear x 2)























Audio



• Chip integrated by Realtek® ALC887

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 spec























LAN



• Supports Gb LAN 10/100/1000 by Realtek® RTL8111G























Internal I/O Connectors



- 1 x ATX 24-Pin power connector

- 1 x 4-pin ATX 12V power connector

- CPU x 1 / System x 2 FAN connectors

- 1 x Clear CMOS jumper

- 2 x SATAIII connectors

- 2 x SATAII connectors

- 2 x USB 2.0 connectors

- 1 x Serial port connector

- 1 x Trusted Platform Module (TPM) header

- 1 x Front Panel Audio connector

- 1 x Chassis Intrusion connector























Back Panel I/O Ports



- 1 x PS/2 keyboard port

- 1 x PS/2 mouse port

- 4 x USB 2.0 ports

- 2 x USB 3.0 ports

- 1 x RJ45 LAN Jack

- 1 x 3 in 1 audio jack

- 1 x Graphic Card port

- 1 x HDMI port
