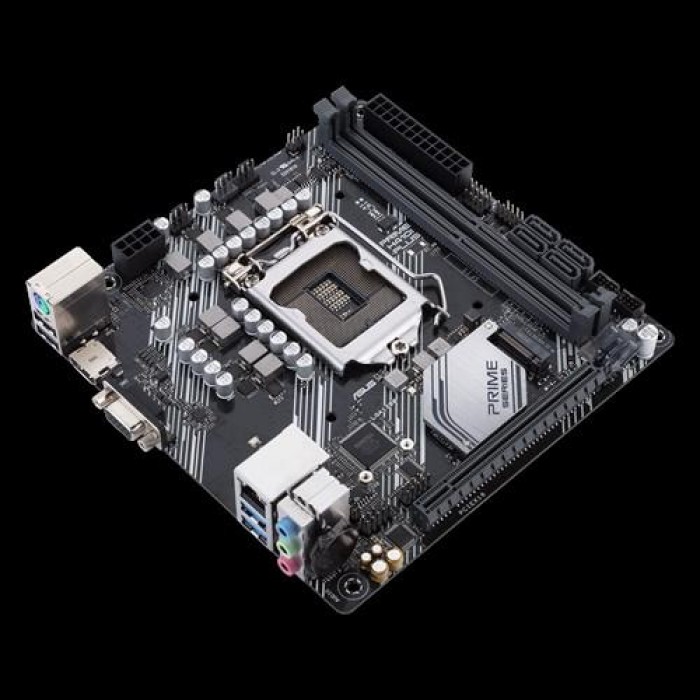

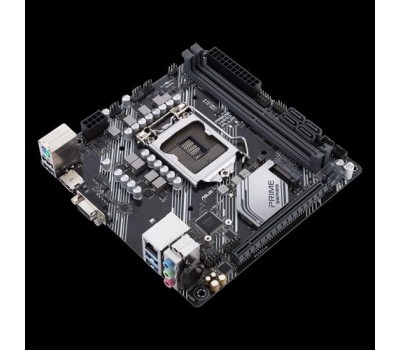

Материнcкая плата ASUS PRIME_H410I-PLUS s1200 H410 2xDDR4 M.2 HDMI-VGA mITX

36
День

CPU

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
*Supports up to 65W CPUs. For more details, please refer to www.asus.comfor Intel® CPU support list.

• Chipset Intel® H410
• Memory Intel® H410 Chipset
  2 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
• Graphic Integrated Graphics Processor- Intel® UHD Graphics support
  1 x HDMI 1.4b
  1 x D-Sub
  *Graphics specifications may vary between CPU types.
• Expansion Slots 16-Lane CPU-
  1 x PCIe 3.0/2.0 x16 (x16 mode)
• Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  Intel® H410 Chipset :
  1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode)
  4 x SATA 6Gb/s port(s)
• LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard
• Audio Realtek® ALC887 7.1-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, up to 24-Bit/192kHz playback
  Audio Feature :
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports Rear USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(2 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 4 )
  2 x USB 3.2 Gen 1 (up to 5Gbps) port(s)
  2 x USB 2.0 port(s)
• Software Features ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  - Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 4
  - EZ update
  ASUS CPU-Z
  AI Charger
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
  - ASUS Enhanced DRAM Overcurrent Protection
  - ASUS ESD Guards
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-Connector
  - ASUS Q-DIMM
  - ASUS Q-Slot - ASUS Q-Connector
  - ASUS Q-DIMM
  - ASUS Q-Slot - ASUS Q-Connector
  - ASUS Q-DIMM
  - ASUS Q-Slot
  AURA Sync
  - Aura RGB header(s)
• Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 1 Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s)
  1 x AIO_PUMP connector
  1 x AAFP connector
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector
• Accessories User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability WOL by PME, PXE
• Operating System Windows® 10 64-bit
• Form Factor Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
