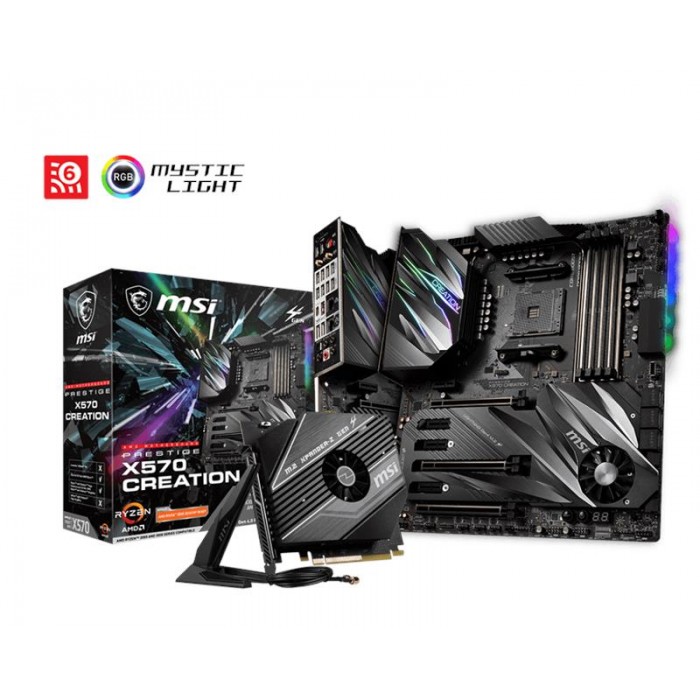

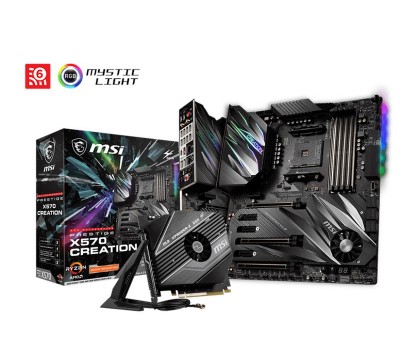

Материнcкая плата MSI PRESTIGE_X570_CREATION sAM4 X570 4xDDR4 PCIe 4.0 Wi-Fi!!!BT EATX

36
Месяц

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® X570 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB
  • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE
  • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

Expansion Slots

• 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)1
  • 2x PCIe 4.0/3.0 x16 slot (PCI_E2, PCI_E5)
  • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 mode
  • 2nd Gen AMD Ryzen™ support PCIe 3.0x16/x0, x8/x8 mode
  • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8/x0 mode
• 1x PCIe 4.0/3.0 x16 slot (PCI_E7, supports x4 mode)
• 4x PCIe 2.0 x1 slots

1. The speeds may vary for different devices

Multi-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 3-Way AMD® CrossFire™ Technology

Storage

AMD® X570 Chipset

• 4x SATA 6Gb/s ports (SATA1-SATA4)
• 2x M.2 slots (Key M)
  • M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices
  • M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices

ASMedia ASM1061

• 2x SATA 6Gb/s ports (SATA5, SATA6)

1. The speeds may vary for different devices

RAID

AMD® X570 Chipset

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

• 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector
• 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
• 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

• 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
• 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports Optical S/PDIF output

LAN

• 1x Intel® I211AT Gigabit LAN controller
• 1x Aquantia® AQC107 10-Gigabit LAN controller

WiFi & Bluetooth

Intel® Wi-Fi 6 AX200

• The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot
• Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
• Supports Bluetooth® 5

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen2 Type-C port
• 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin Water Pump connector
• 7x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 2x 2-pin Thermal Sensors connectors
• 1x 4-pin RGB LED connector
• 2x 3-pin RAINBOW LED connectors
• 1x 3-pin CORSAIR LED connector

Back panel ports

1. PS/2 Combo Port
2. Intel Wi-Fi 6
3. LAN Port
4. 10G LAN Port
5. HD Audio Connectors
6. Clear CMOS Button
7. USB 2.0 Ports
8. USB 3.2 Gen1 Ports
9. USB 3.2 Gen2 Type-A+C
10. USB 3.2 Gen1 Type-A
11. Optical S/PDIF OUT

Dimensions

• 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
• E-ATX Form Factor

Mounting

9 mounting holes

Operating System

• Support for Windows® 10 64-bit

Box content

1. MSI® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
