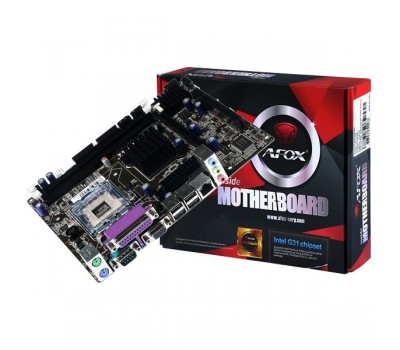

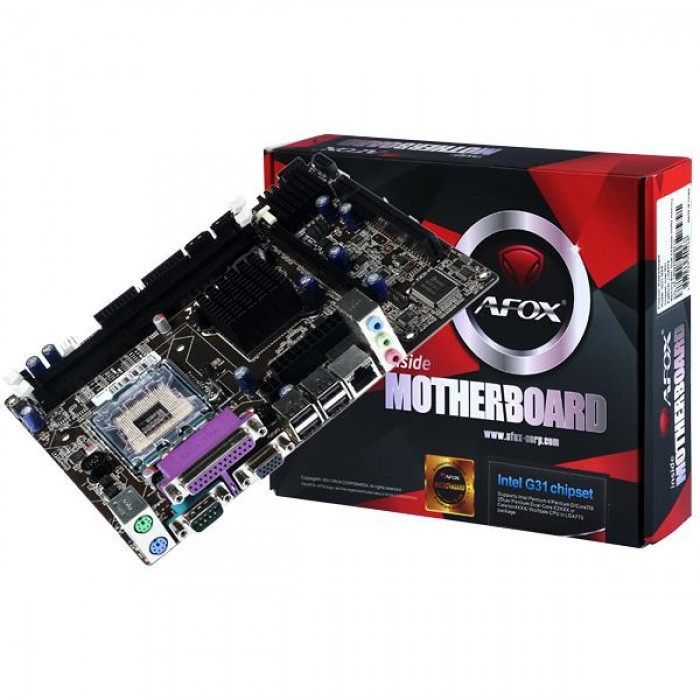

Материнская плата AFOX IG31-MA5 s775, G31, 2xDDR2 1xPCIe16, VGA, COM/LPT (!), mATX
Описание
24
Месяц
Месяц
| Платформа | Intel® Socket 775 |
| Чипсет | Intel® G31 Express Chipset + ICH7 |
| Поддержка процессоров | Intel® Core™ 2 Quad / Duo / Extreme / Pentium® D / Pentium® 4 / Celeron® 4 Processors |
| 800/1066/1333MHz | |
| Поддержка памяти | Dual Channel DDR2 667/800MHz |
| 2 x Memory Slots (Max. capacity of system memory 4GB) | |
| Интегрированная графика | Integrated Intel® GMA 3100 graphics |
| Слоты расширения | 1 x PCI Express x16 slot, 1 x PCI slot |
| SATA | 4 x SATA2 |
| Аудио | Realtek 662 on board, Supports 6-channel audio-out |
| Сеть | Realtek RTL8105 10/100Mbps Ethernet on board |
| Разъёмы на задней панели | 1 x D-Sub (VGA) Port |
| 1 x COM Port | |
| 1 x PS/2 Mouse Port | |
| 1 x PS/2 Keyboard Port | |
| 1 x Parallel (LPT) Port | |
| 4 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 3 x HD Audio Jack (Line in / Front Speaker / Microphone) | |
| Интегрированные разъёмы | 2 x USB 2.0 pinheaders (supports additional 4 USB 2.0s) |
| 1 x Front Panel Audio pinheader | |
| Форм-фактор | Micro-ATX (17 x 21 cm) |
| Аксессуары | 1 x SATA II cable |
| 1 x I/O Rear Panel | |
| 1 x User Manual | |
| 1 x Driver CD |
